Hyundai Veloster: Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams - Engine Control System - Fuel System - Hyundai Veloster 2010-2019 Service ManualHyundai Veloster: Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams

First generation (2011–present) / Hyundai Veloster 2010-2019 Service Manual / Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS). Schematic Diagrams

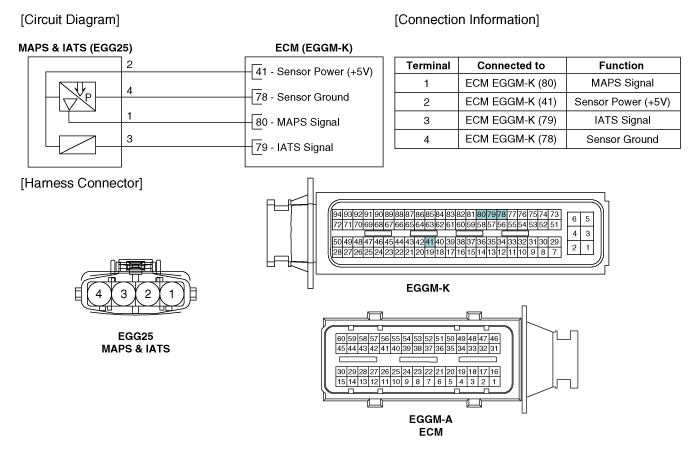

Circuit Diagram


Manifold Absolute Pressure Sensor (MAPS). Troubleshooting
Signal Waveform ...

Manifold Absolute Pressure Sensor (MAPS). Repair procedures
Inspection 1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. ...
