Hyundai Veloster: ESC Control Module. Components and Components Location - ESC(Electronic Stability Control) System - Brake SystemHyundai Veloster: ESC Control Module. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Brake System / ESC(Electronic Stability Control) System / ESC Control Module. Components and Components Location

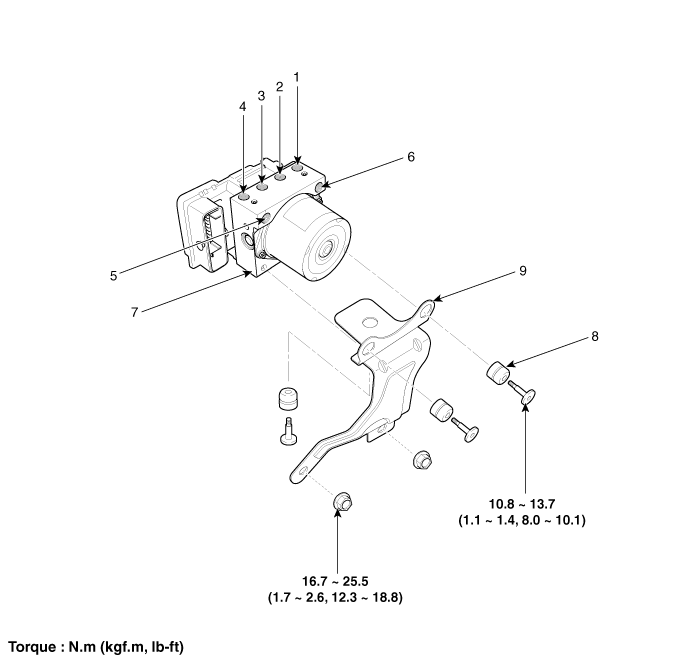

Components

1. Front - left tube
2. Rear - right tube
3. Rear - left tube
4. Front - right tube
5. MC2
6. MC1
7. ESC control module (HECU)
8. Damper
9. Bracket


EBD(Electronic Brake-force Distribution). Description and Operation
Operation The EBD system (Electronic Brake force Distribution) as a sub-system of the ABS system is to control the maximum braking effectiveness by the rear wheels. It further utilizes ...

ESC Control Module. Repair procedures
Removal 1. Turn ignition switch OFF. 2. Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner. ...
