Hyundai Veloster: Console. Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Interior / Console. Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Interior / Console. Components and Components
Location
Components
|

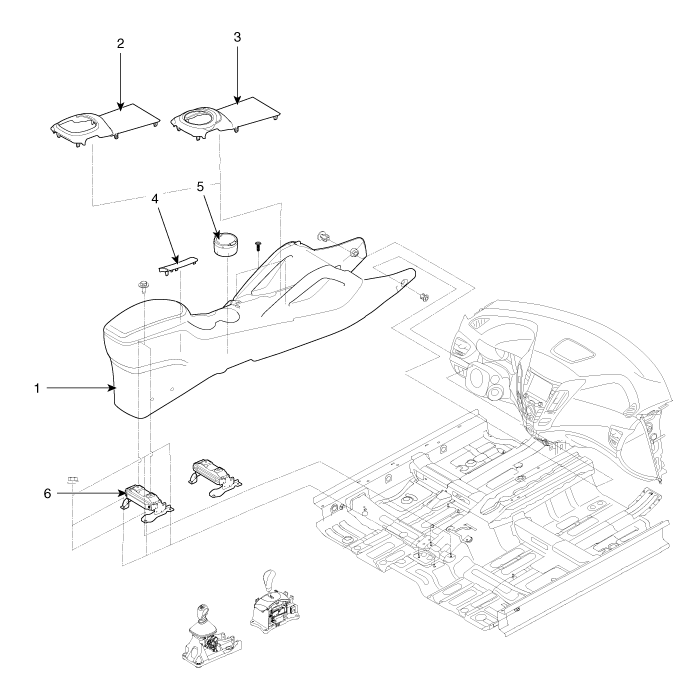

1. Floor console assembly 2. Console upper cover [M/T] 3. Console upper cover [A/T] |
4. Parking brake cover 5. Ash tray assembly 6. Floor console rear mounting bracket |
Interior
...
Console. Repair procedures
Replacement
Floor Console Replacement
[M/T]
•
A plastic trim tool is recommended, ...
