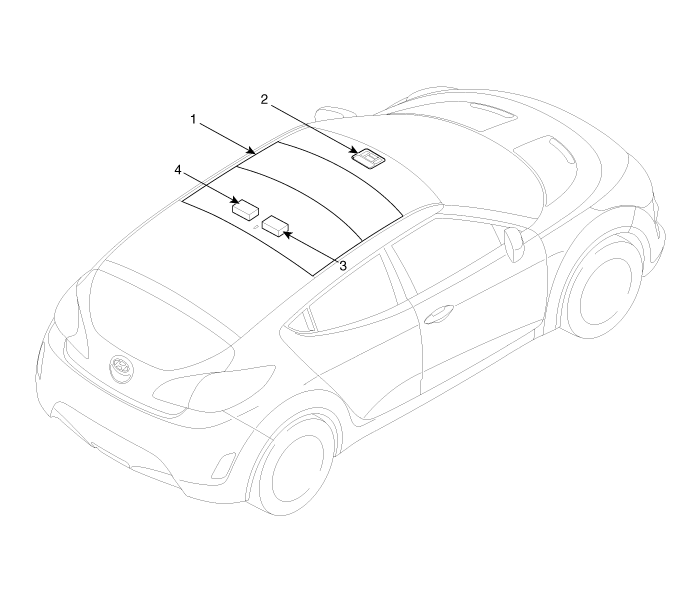

Component Location
|
1. Panoramaroof 2. Panoramaroof switch |
3. Panoramaroof motor & controller 4. Roller blind motor & slave controller |
Panoramaroof
...
