Hyundai Veloster: Schematic Diagrams
First generation (2011–present) / Hyundai Veloster 2010-2018 Service Manual / Body Electrical System / Panoramaroof / Schematic Diagrams
First generation (2011–present) / Hyundai Veloster 2010-2018 Service Manual / Body Electrical System / Panoramaroof / Schematic Diagrams

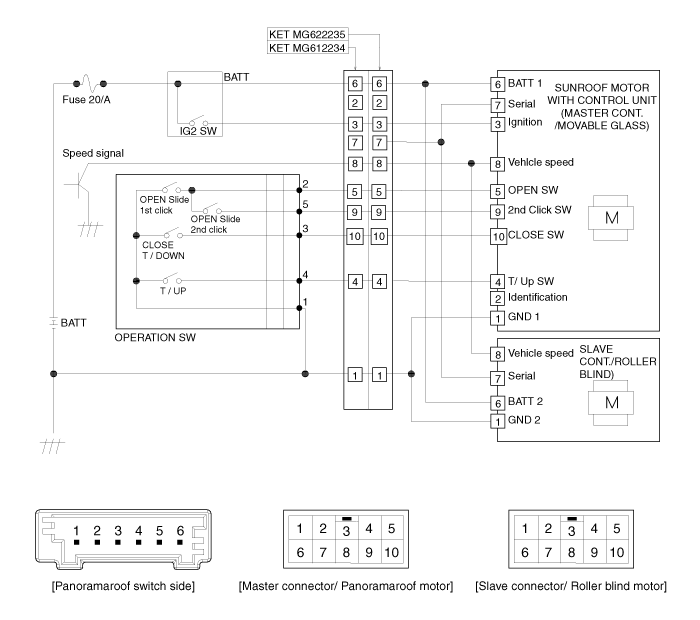

Circuit Diagram
Components and Components Location
Component Location
1. Panoramaroof
2. Panoramaroof switch
3. Panoramaroof motor & controller
4. Roller blind motor & slave controller
...

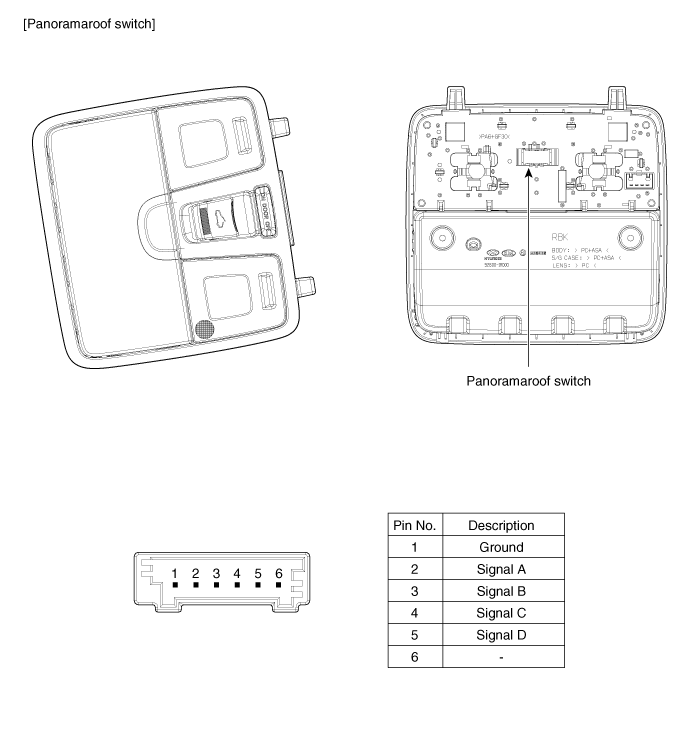

Panoramaroof Switch. Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Open the sunglass case cover from the overhead console then remove
the 2 sc ...
