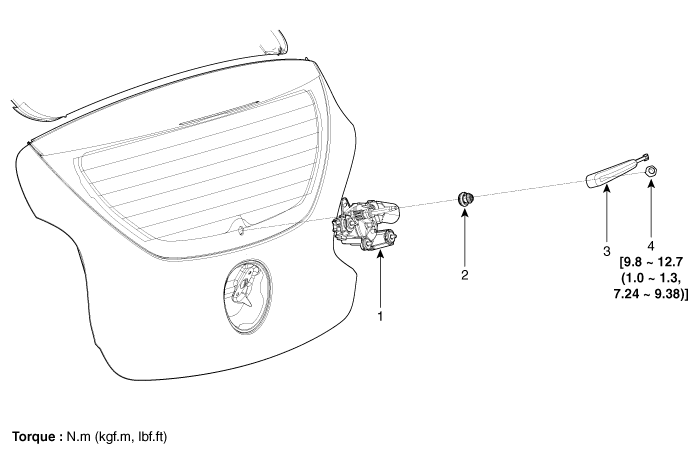

Component Location
|
1. Rear wiper motor assembly 2. Rear wiper motor grommet |
3. Rear wiper arm & blade 4. Nut |
Rear Wiper Motor. Repair procedures
Inspection
Rear Wiper Motor
1.
Remove the connector from the rear wiper motor.
2.
Connect battery positive (+) and negative (-) cables to t ...
