Hyundai Veloster: Rear Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Bumper / Rear Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Bumper / Rear Components and Components
Location

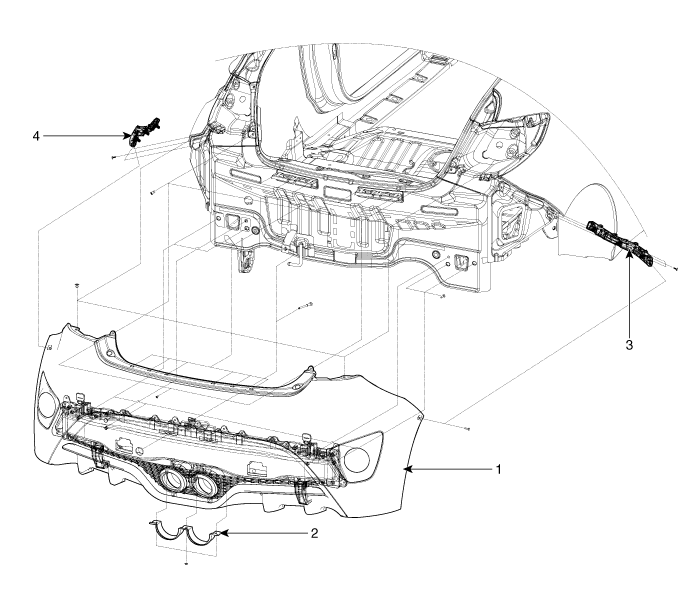

Components-1
|
1. Rear bumper cover 2. Tail trim lower cover |
3. Rear bumper side bracket [RH] 4. Rear bumper side bracket [LH] |

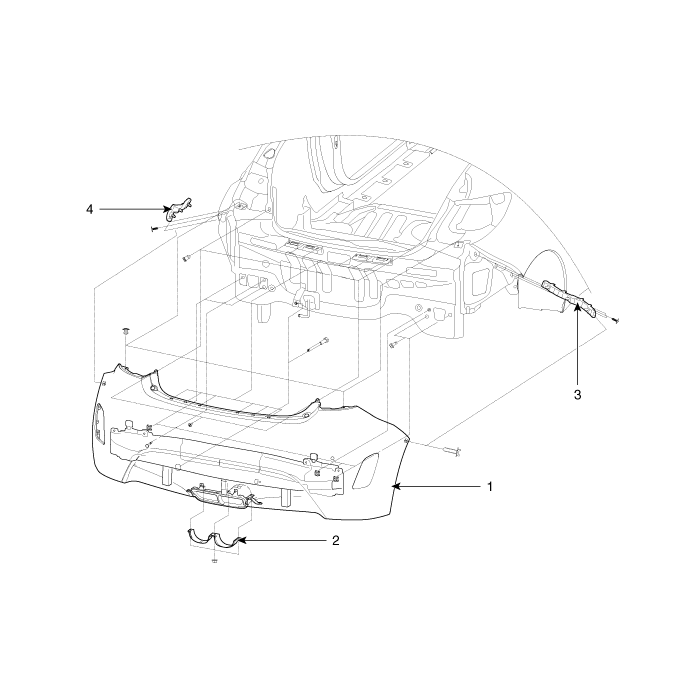

Components-2 (T-GDI)
|
1. Rear bumper cover 2. Tail trim lower cover |
3. Rear bumper side bracket [RH] 4. Rear bumper side bracket [LH] |
Front Repair procedures
Replacement
•
Put on gloves to protect your hands.
•
...
Rear Repair procedures
Replacement
•
Put on gloves to protect your hands.
•
...
