Hyundai Veloster: Components and Components Location - Rear Suspension System - Suspension System - Hyundai Veloster 2010-2019 Service ManualHyundai Veloster: Components and Components Location

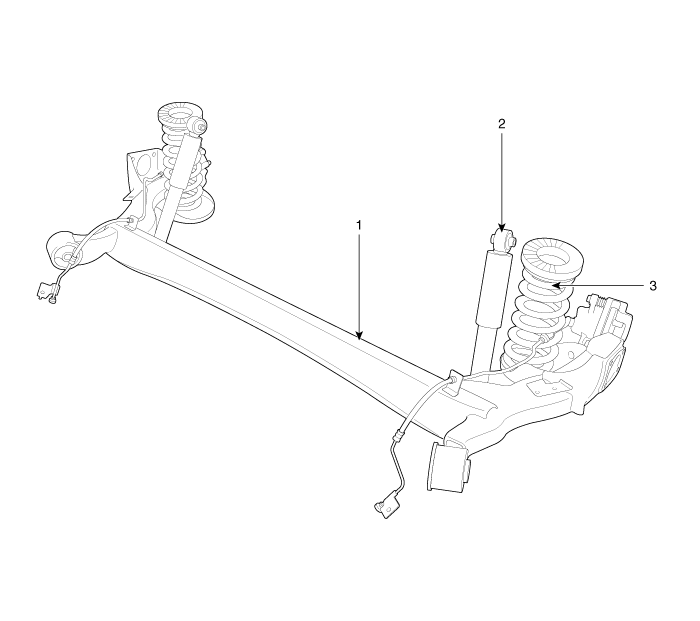

Components Location

1. Torsion beam axle
2. Shock absorber
3. Coil spring assembly
