Hyundai Veloster: Rear Shock Absorber. Components and Components Location - Rear Suspension System - Suspension System - Hyundai Veloster 2010-2019 Service ManualHyundai Veloster: Rear Shock Absorber. Components and Components Location

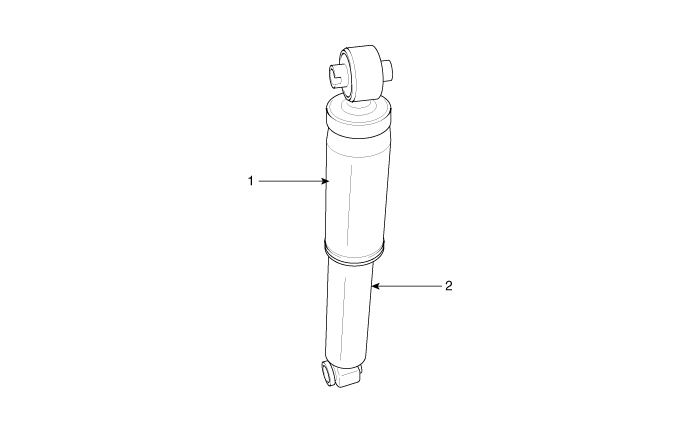

Components

Must completely be tigtened at the curb position of vehicle when assemble shock absorber
1. Dust cover
2. Shock absorber


Components and Components Location
Components Location 1. Torsion beam axle 2. Shock absorber 3. Coil spring assembly ...

Rear Shock Absorber. Repair procedures
Replacement 1. Remove the rear wheel & tire. Tightening torque : 88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft) ...
