Hyundai Veloster: Brake Booster. Components and Components Location - Brake System - Brake SystemHyundai Veloster: Brake Booster. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Brake System / Brake System / Brake Booster. Components and Components Location

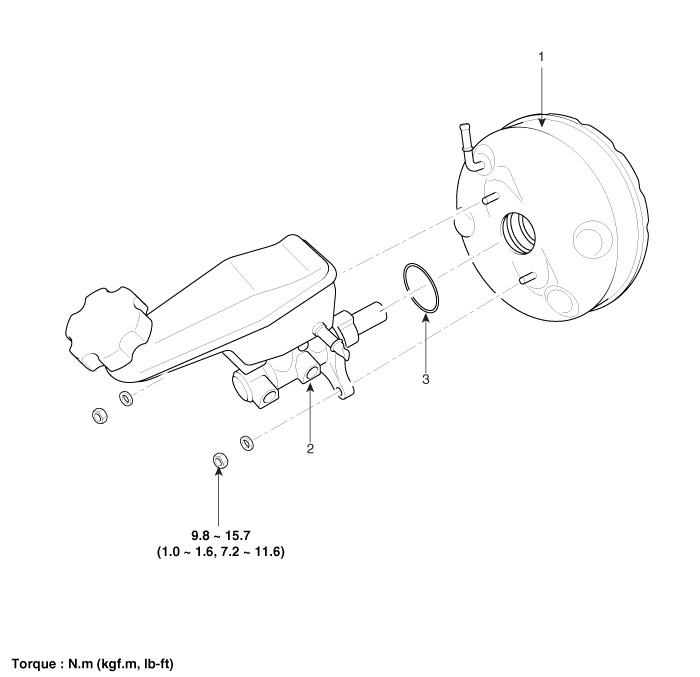

Components (1)

1. Brake booster
2. Master cylinder assembly
3. O-ring

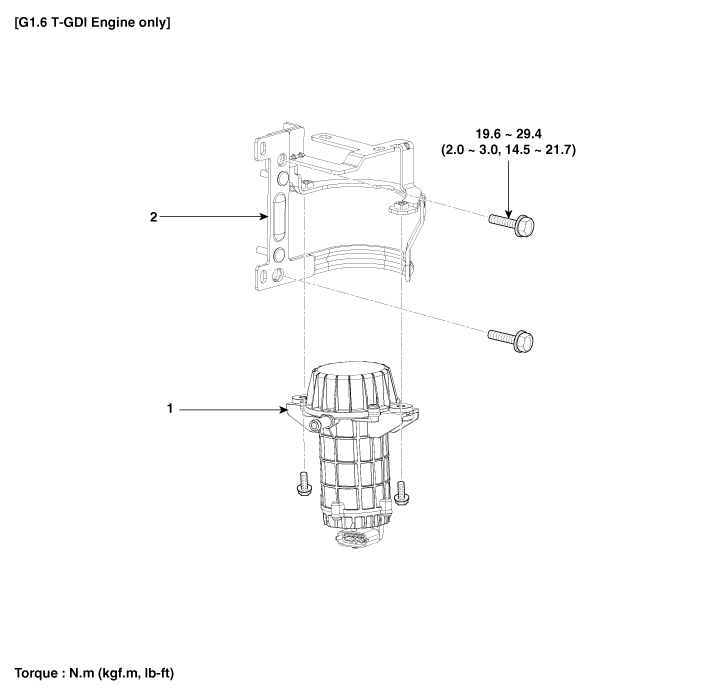

Components (2)

1. Vacuum pump
2. Bracket


Description and Operation
Operation and Leakage Check Check all of the following items: Component Procedure Brake Booster (A) Check brake operation by applyin ...

Brake Booster. Repair procedures
Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop ...
