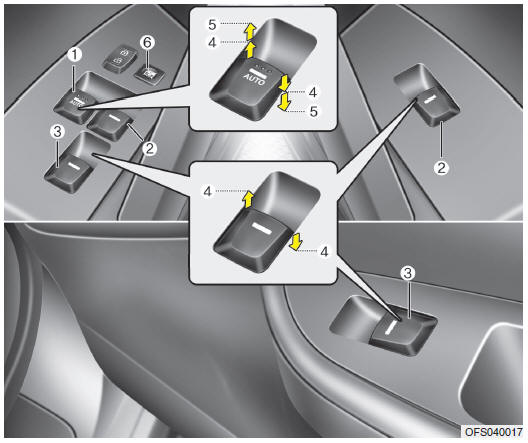

(1) Driver’s door power window switch
(2) Front passenger’s door power window
switch
(3) Rear door (right) power window switch*
(4) Window opening and closing
(5) Automatic power window*
(6) Power window lock switch*
✽ NOTICE
In cold and wet climates, power windows may not work properly due to freezing conditions.
Power windows
The ignition switch must be in the ON position for power windows to operate. Each door has a power window switch that controls the door's window. The driver has a master power window switch that controls all the windows in the vehicle. Also, a power window lock switch which that can block the operation of rear passenger windows. The power windows can be operated for approximately 30 seconds after the ignition key is removed or turned to the ACC or LOCK position. However, if the front doors are opened, the power windows cannot be operated within the 30 seconds period.
✽ NOTICE
While driving with the rear windows down or with the sunroof (if equipped) opened (or partially opened), your vehicle may demonstrate a wind buffeting or pulsation noise. This noise is a normal occurrence and can be reduced or eliminated by taking the following actions. If the noise occurs with one or both of the rear windows down, partially lower both front windows approximately one inch. If you experience the noise with the sunroof open, slightly reduce the size of the sunroof opening
Window opening and closing
Type A
To open or close a window, press down or pull up the front portion of the corresponding switch to the first detent position (4).
Type B - Auto down window (if equipped)
Pressing the power window switch momentarily to the second detent position (6) completely lowers the window even when the switch is released.To stop the window at the desired position while the window is in operation, pull up the switch momentarily to the opposite direction of the window movement.
Type C - Auto up/down window (if equipped)
Pressing or pulling up the power window switch momentarily to the second detent position (5) completely lowers or lifts the window even when the switch is released. To stop the window at the desired position while the window is in operation, pull up or press down and release the switch.
If the power window does not operate normally, the automatic power window system must be reset as follows:
1. Turn the ignition switch to the ON position.
2. Close the window and continue
pulling up the power window switch for at least 1 second after the window is completely
closed.
Automatic reversal (if equipped)
If the upward movement of the window is blocked by an object or part of the body, the window will detect the resistance and will stop upward movement. The window will then lower approximately 30 cm (11.8 in.) to allow the object to be cleared.
If the window detects the resistance while the power window switch is pulled up continuously, the window will stop upward movement then lower approximately 2.5 cm (1 in.). And if the power window switch is pulled up continuously again within 5 seconds after the window is lowered by the automatic window reversal feature, the automatic window reversal will not operate.
✽ NOTICE
The automatic reverse feature for the window is only active when the “auto up” feature is used by fully pulling up the switch. The automatic reverse feature will not operate if the window is raised using the halfway position on the power window switch.
WARNING
Always check for obstructions before raising any window to avoid injuries or vehicle damage. If an object less than 4 mm (0.16 in.) in diameter is caught between the window glass and the upper window channel, the automatic reverse window may not detect the resistance and will not stop and reverse direction.

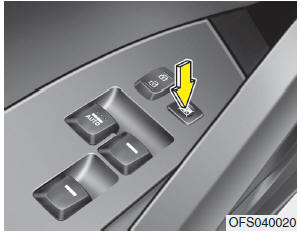

Power window lock button
CAUTION
WARNING - Windows
