Hyundai Veloster: Starter - Starting System - Engine Electrical SystemHyundai Veloster: Starter

Hyundai Veloster 2011-2017 Service Manual / Engine Electrical System / Starting System / Starter

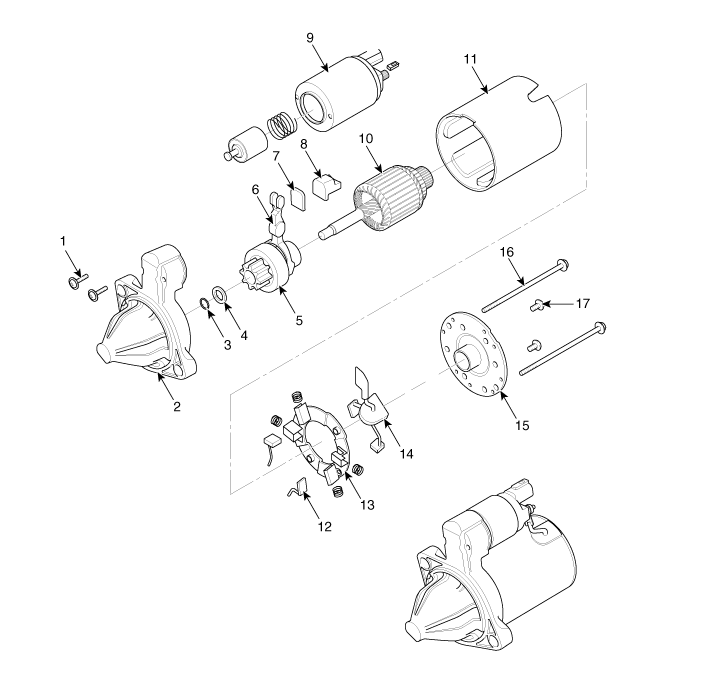

Components and Components Location

Components

1. Screw
2. Front bracket
3. Stop ring
4. Stopper
5. Overrun clutch
6. Lever
7. Lever plate
8. Lever packing
9. Magnet switch
 10. Armature
11. Yoke assembly
12. Brush (-)
13. Brush holder
14. Brush (+)
15. Rear bracket
16. Through bolts
17. Screw


Repair procedures
Troubleshooting Starter Circuit The battery must be in good condition and fully charged. 1. Remove ...

Starter
Repair procedures Removal and Installation 1. Disconnect the battery negative terminal. 2. Remove the air duct and air cleaner assembly. (Refe ...
