Hyundai Veloster: Schematic Diagrams
Hyundai Veloster 2011-2017 Service Manual / Brake System / ESC(Electronic Stability Control) System / Schematic Diagrams

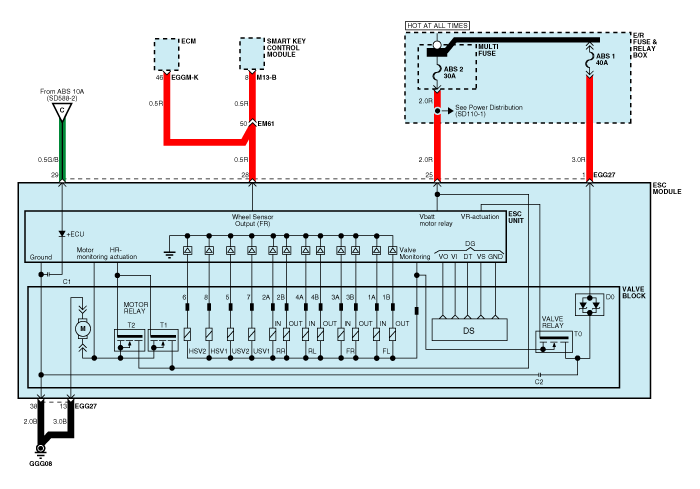

Circuit Diagram - ESC (1)

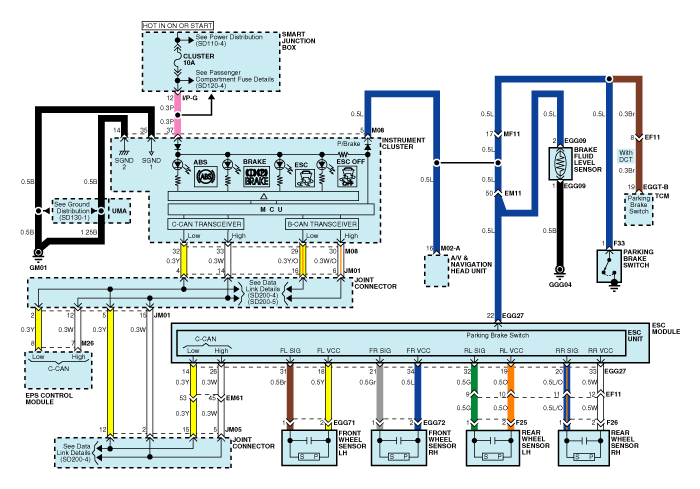

Circuit Diagram - ESC (2)

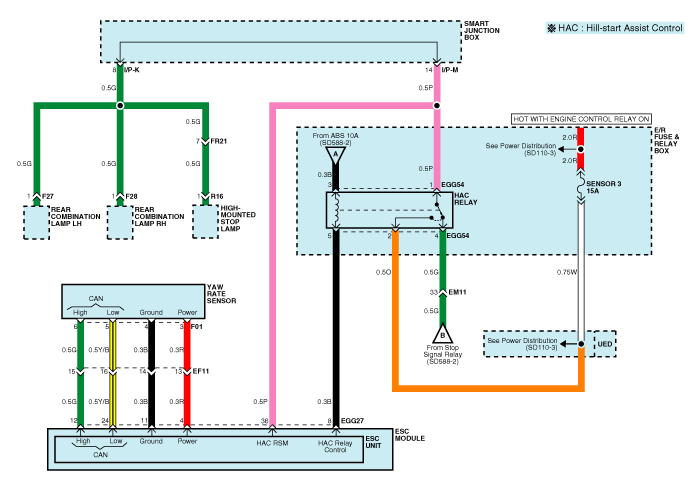

Circuit Diagram - ESC (3)

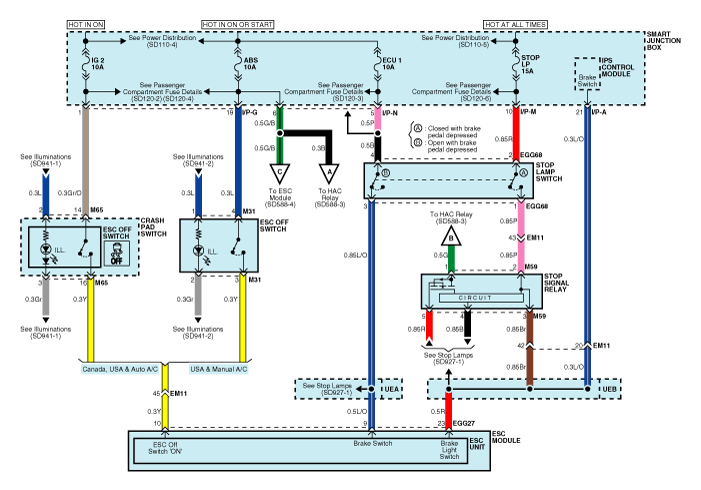

Circuit Diagram - ESC (4)

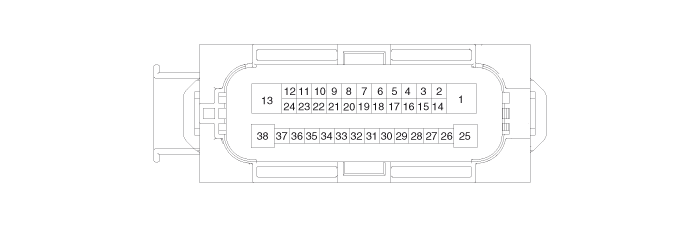

ESC connector input/output
|
Connector Terminal |
Specification |
Remark |
|
|
No |
Description |
||
|
29 |
IGNITION1(+) |
High level of wake up voltage : 4.5V < V < 16.0V Low level of wake up voltage : V < 2.4V Max. current : I < 50mA |
|
|
25 |
POS. BATTERY 1.(SOLENOID) |
Over voltage range : 17.0 ± 0.5V Operating voltage range : 10.0 ± 0.5V < V < 16.0 ± 0.5V Low voltage range : 7.0 ± 0.5V < V < 9.5 ± 0.5V Max. current : I < 40A Max. leakage current : I < 0.25mA |
|
|
1 |
POS. BATTERY 2.(MOTOR) |
Operating voltage range: 10.0 ± 0.5V < V < 16.0 ± 0.5V Rush current : I < 110A Max current : I < 40A Max leakage current : I < 0.25mA |
|
|
38 |
GROUND |
Rated current : I <550mA Max. current: I < 40A |
|
|
13 |
PUMP MOTOR GROUND |
Rush current : I < 110A Max current : I < 40A |
|
|
11 |
SENSOR GROUND |
Rated current : I <250mA |
|
|
4 |
SENSOR POWER |
Max current Capability : I < 250mA Max voltage : V_BAT1 -0.8V |
|
|
23 |
BRAKE LIGHT SWITCH |
Input voltage (Low) : V < 2.0V Input voltage (High) : V. 6.0V Max. Input current : I < 3mA (@12.8V) |
|
|
10 |
ESC ON/OFF SWITCH |
||
|
9 |
BRAKE SWITCH |
||
|
22 |
PARKING BRAKE SWITCH |
Input voltage (Low) : V < 2.0V Input voltage (High) : V. 6.0V Max input current : I < 5mA (@12.8V) |
|
|
28 |
SENSOR FRONT RIGHT OUTPUT |
External pull up resistance :1 KΩ < R Output duty : 50 ± 20% |
|
|
14 |
CAN BUS LINE(LOW) |
Max. Input current : I < 10mA |
|
|
26 |
CAN BUS LINE(HIGH) |
||
|
18 |
SENSOR FRONT LEFT POWER |
Output voltage : V_BAT1 -0.6V ~ V_BAT1 -1.1V Output current : Max 30mA |
|
|
34 |
SENSOR FRONT RIGHT POWER |
||
|
19 |
SENSOR REAR LEFT POWER |
||
|
33 |
SENSOR REAR RIGHT POWER |
||
|
31 |
SENSOR FRONT LEFT SIGNAL |
Input current LOW : 5.9 ~ 8.4mA Input current HIGH : 11.8 ~ 16.8mA Frequency range : 1 ~ 2,500Hz Input duty : 50 ± 10% |
|
|
21 |
SENSOR FRONT RIGHT SIGNAL |
||
|
32 |
SENSOR REAR LEFT SIGNAL |
||
|
20 |
SENSOR REAR RIGHT SIGNAL |
||
|
12 |
CAN SENSOR LINE (HIGH) |
Max. input current : I < 10mA |
|
|
24 |
CAN SENSOR LINE (LOW) |
||
|
8 |
HAC RELAY DRIVE |
Max. current : I < 180mA Max output voltage : V< 1.2V |
|
|
36 |
HAC RELAY STATE MONITORING |
Input voltage (Low) : V < 2V Input voltage (High) : V. 6V Max input current : I < 10mA (@12.8V) |
|
Description and Operation
Description of ESC
Optimum driving safety now has a name : ESC, the Electronic Stability
Control.
ESC recognizes critical driving conditions, such as panic reactions in
dangerous sit ...
Troubleshooting
Failure Diagnosis
1.
In principle, ESC and TCS controls are prohibited in case of ABS
failure.
2.
When ESC or TCS fails, only the failed s ...
