Inspection
| 1. |
Disconnect the power door mirror switch module connector from
front door trim panel.
|
| 2. |

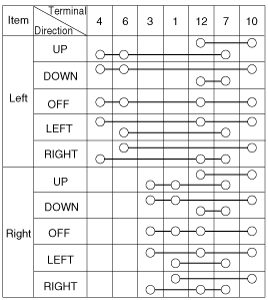

Check for the continuity between terminals of power door mirror
switch according to the table.
[Power Mirror Switch]
|
Removal
| 1. |
Disconnect the negative(-) battery terminal.
|
| 2. |
Remove the front door trim panel.
(Refer to the BD group - "Front door")
|
| 3. |
Disconnect the power door mirror switch connector(A) from the
door trim panel.
|
| 4. |
Remove the power door mirror switch(A), after loosening the screw
(3EA).
|
Installation
| 1. |
Install the driver power window switch and connectors.
|
| 2. |
Install the front door trim panel.
|
Power Outside Mirror Switch. Schematic Diagrams
Circuit configuration
...
Power Door Mirror Actuator. Repair procedures
Inspection
1.
Disconnect the negative(-) battery terminal.
2.
Remove the delta cover(A).
3.
Disconnect ...
