When heavy rear components such as suspension, fuel tank, spare
tire, tailgate and trunk lid are to be removed, place additional weight
in the luggage area before hoisting. When substantial weight is removed
from the rear of the vehicle, the center of gravity may change and can
cause the vehicle to tip forward on the hoist.
|
|
1. |

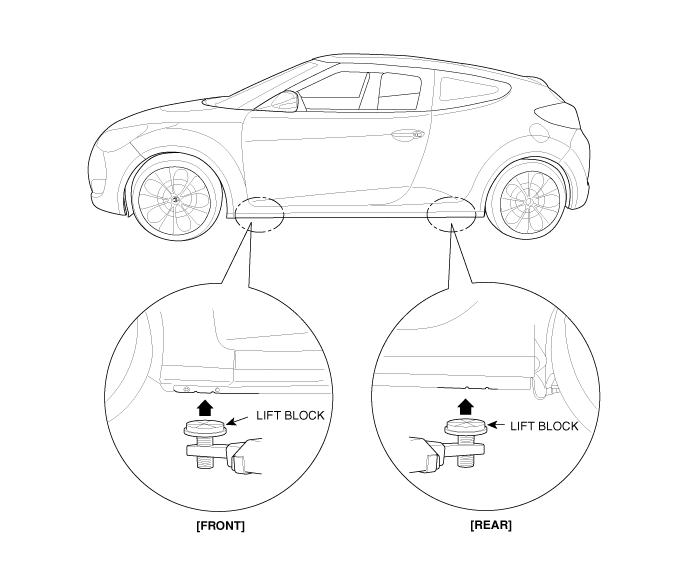

Place the lift blocks under the support points as shown in the
illustration.
|
2. |
Raise the hoist a few inches (centimeters) and rock the vehicle
to be sure it is firmly supported.
|
3. |
Raise the hoist to full height to inspect the lift points for
secure support.
|
Schematic Diagrams
MDPS Circuit Diagram
Harness Connector
Type
Pin NO
Description
Battery
1
Battery +
2
B ...
Brake Booster. Components and Components Location
Components (1)
1. Brake booster
2. Master cylinder assembly
3. O-ring
Components (2)
1. Vacuum pump
2. Bracket
...
Intake Air Temperature Sensor (IATS). Schematic Diagrams
Circuit Diagram
...
