Components
|

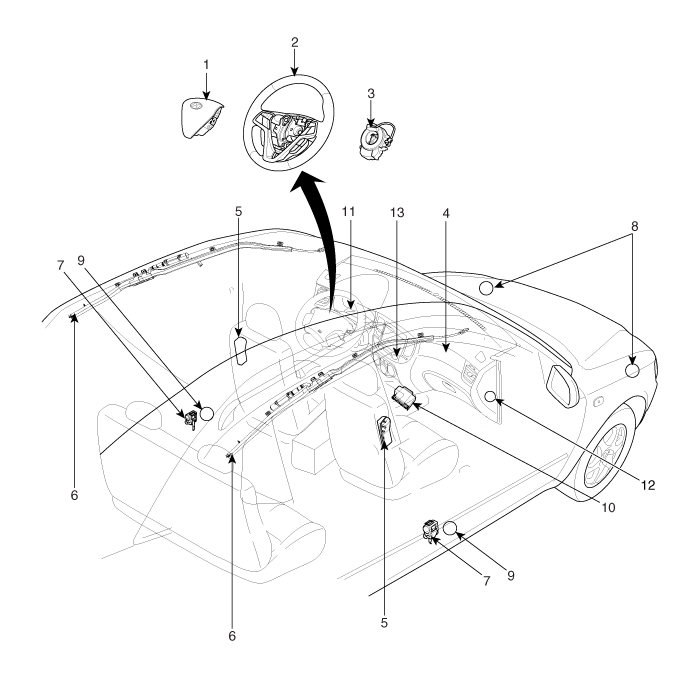

1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Passenger Airbag (PAB) 5. Side Airbag (SAB) 6. Curtain Airbag (CAB) 7. Seat Belt Pretensioner (BPT) |
8. Front Impact Sensor (FIS) 9. Side Impact Sensor (SIS) 10. Supplemental Restraint System Control Module(SRSCM) 11. Airbag Warning Lamp 12. PAB ON/OFF Switch 13. PAB ON/OFF Lamp |
Components Location
| Supplemental Restraint System Control Module (SRSCM) |

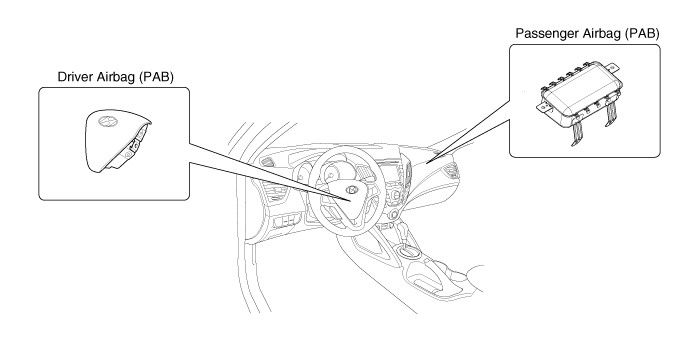

| Driver Airbag (DAB) / Passenger Airbag (PAB) |

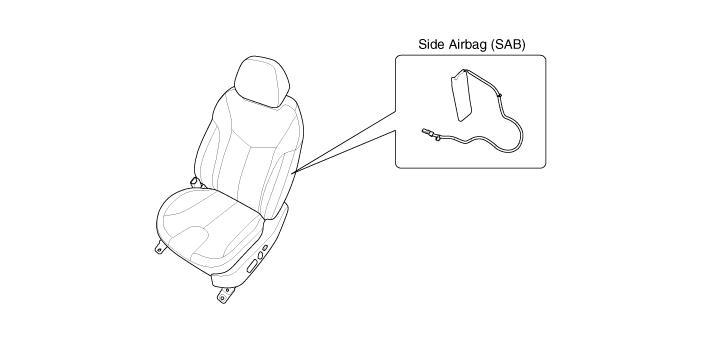

| Side Airbag (SAB) |

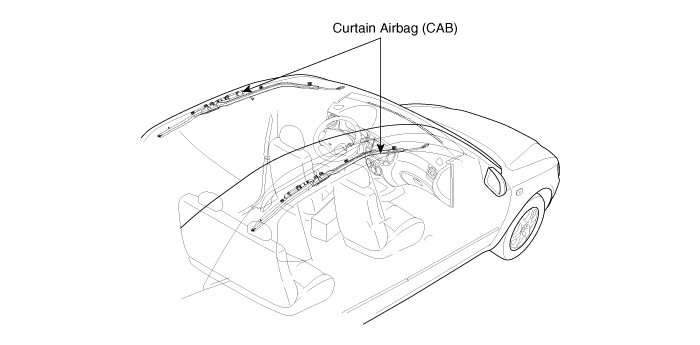

| Curtain Airbag (CAB) |
| Front Impact Sensor (FIS) |

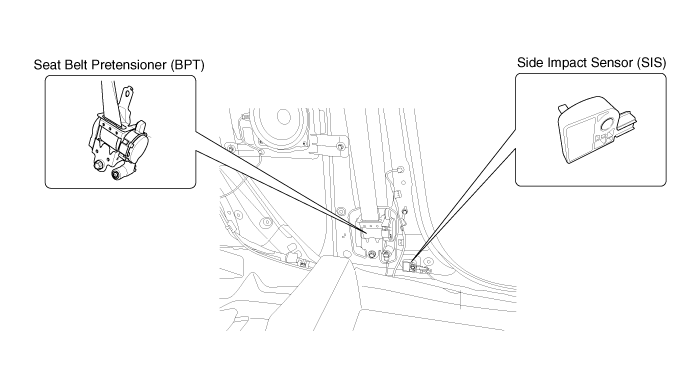

| Side Impact Sensor (SIS)/ Seat Belt Pretensioner (BPT) |
Repair procedures
Component Replacement After Deployment
Before doing any SRS repairs, use the GDS to check for DTCs. Refer
to the Diagnostic Tr ...
SRSCM
...
