Hyundai Veloster: Body Repair

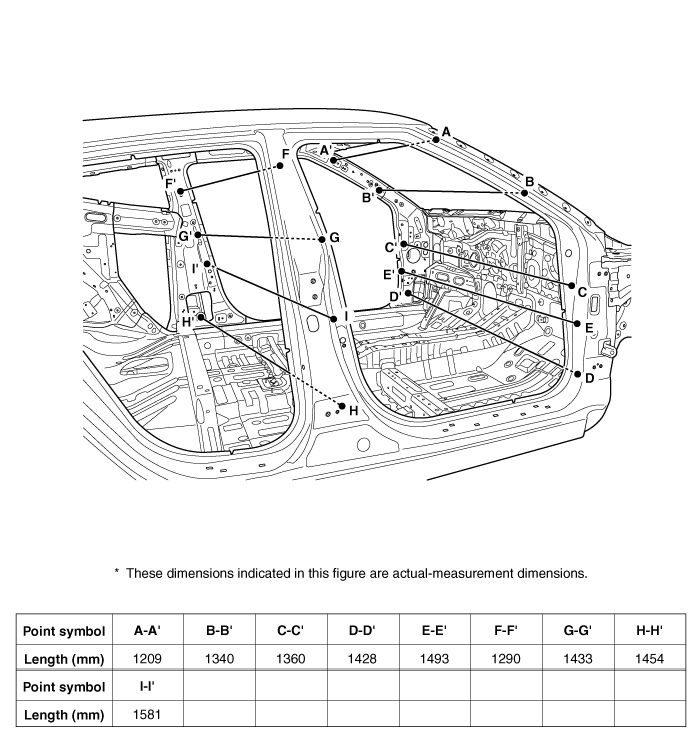

Interior A
|
|
|
|
|
Front pillar trim mounting hole (Ø8) |
Curtain airbag mounting hole (Ø6.6) |
Cowl crossbar mounting hole (Ø12) |
|
|
|
|
|
Front pillar inner panel tooling hole (Ø6.6) |
Front door checker mounting hole (Ø13) |
Seat belt upper anchor mounting hole (Ø15) |
|
|
|
|
|
Seat belt upper anchor mounting hole (Ø15) |
Center pillar trim mounting hole (Ø10) |
Quarter trim mounting hole (Ø8.5) |
|
|
|
|
|
Seat belt retractor mounting hole (Ø12) |
Seat belt retractor mounting hole (Ø12) |
Front door striker mounting hole (Ø13) |
|
|
|
|
|
Front door striker mounting hole (Ø13) |
|
|

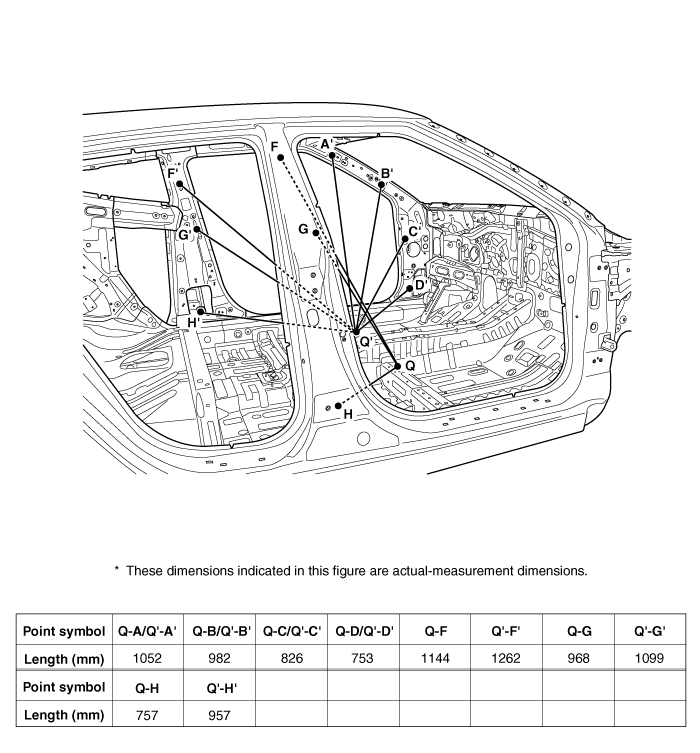

Interior B
|
|
|
|
|
Seat belt upper anchor mounting hole (Ø15) |
Seat belt upper anchor mounting hole (Ø15) |
Center pillar trim mounting hole (Ø10) |
|
|
|
|
|
Quarter trim mounting hole (Ø8.5) |
Seat belt retractor mounting hole (Ø12) |
Seat belt retractor mounting hole (Ø12) |
|
|
|
|
|
Front door striker mounting hole (Ø13) |
Front door striker mounting hole (Ø13) |
Rear pillar trim mounting hole (Ø8.5) |
|
|
|
|
|
Quarter inner lower panel tooling hole (Ø14) |
Rear pillar trim mounting hole (Ø8.5) |
Luggage side trim mounting hole (Ø8.5) |
|
|
|
|
|
Rear transverse trim mounting hole (Ø8.5) |
|
|

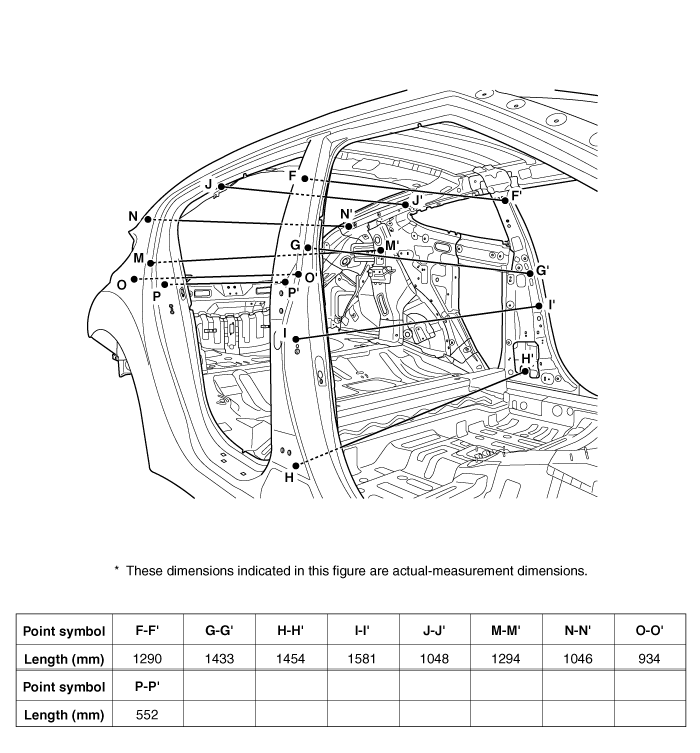

Interior C
|
|
|
|
|
Front pillar trim mounting hole (Ø8) |
Curtain airbag mounting hole (Ø6.6) |
Cowl crossbar mounting hole (Ø12) |
|
|
|
|
|
Front pillar inner panel tooling hole (Ø6.6) |
Seat belt upper anchor mounting hole (Ø15) |
Seat belt upper anchor mounting hole (Ø15) |
|
|
|
|
|
Center pillar trim mounting hole (Ø10) |
Quarter trim mounting hole (Ø8.5) |
Seat belt retractor mounting hole (Ø12) |
|
|
|
|
|
Seat belt retractor mounting hole (Ø12) |
Front seat mounting hole (Ø11) |
|

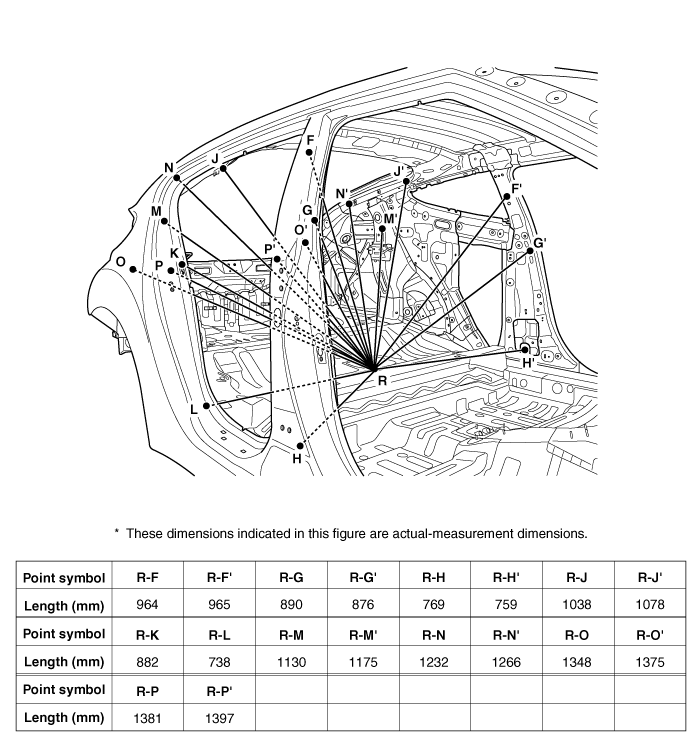

Interior D
|
|
|
|
|
Seat belt upper anchor mounting hole (Ø15) |
Seat belt upper anchor mounting hole (Ø15) |
Center pillar trim mounting hole (Ø10) |
|
|
|
|
|
Quarter trim mounting hole (Ø8.5) |
Seat belt retractor mounting hole (Ø12) |
Seat belt retractor mounting hole (Ø12) |
|
|
|
|
|
Rear pillar trim mounting hole (Ø8.5) |
Quarter inner lower panel tooling hole (Ø18) |
Quarter inner lower panel tooling hole (Ø8.5) |
|
|
|
|
|
Quarter inner lower panel tooling hole (Ø14) |
Rear pillar trim mounting hole (Ø8.5) |
Luggage side trim mounting hole (Ø8.5) |
|
|
|
|
|
Rear transverse trim mounting hole (Ø8.5) |
Rear floor panel tooling hole (Ø7) |
|
