Hyundai Veloster: Relay Box (Passenger Compartment). Components and Components Location - Fuses And Relays - Body Electrical System - Hyundai Veloster 2010-2019 Service ManualHyundai Veloster: Relay Box (Passenger Compartment). Components and Components Location

First generation (2011–present) / Hyundai Veloster 2010-2019 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment). Components and Components Location

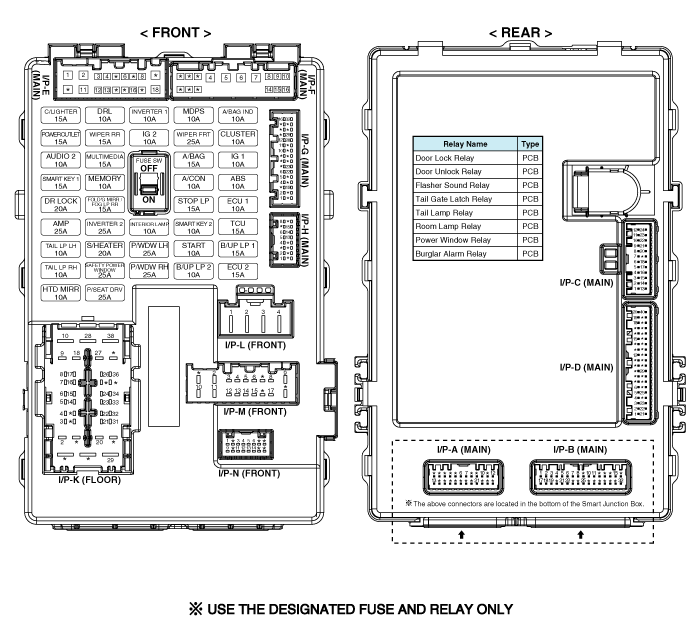

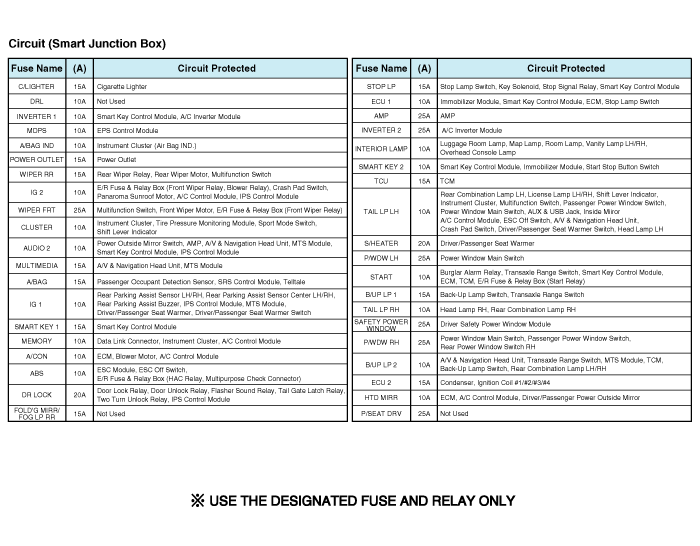

Components
