Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Exterior / Rear Door. Components and Components Location

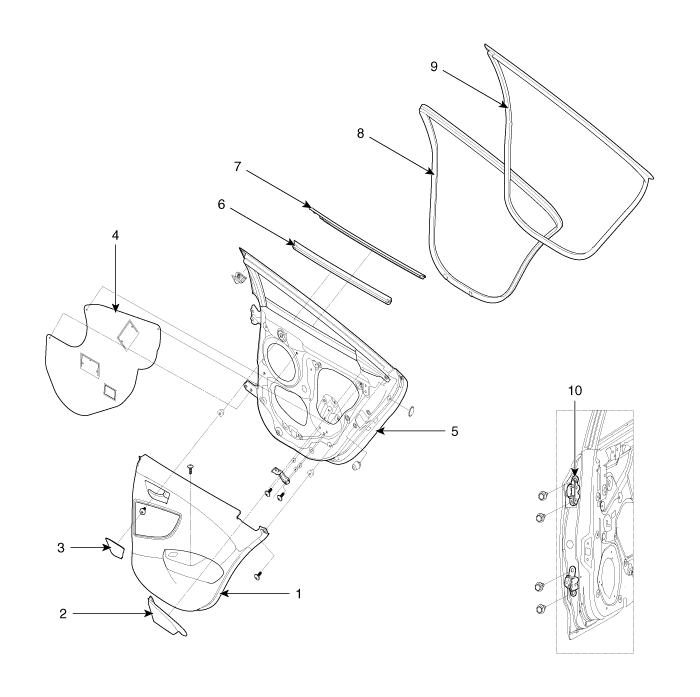

Components

1. Rear door trim
2. Rear door delta inner cover
3. Rear door inside handle cap
4. Rear door trim seal
5. Rear door panel assembly
6. Rear door belt inside weatherstrip
7. Rear door belt outside weatherstrip
8. Rear door body side weatherstrip
9. Rear door side weatherstrip
10. Rear door hinge
