Hyundai Veloster: Rear Coil Spring. Components and Components Location - Rear Suspension System - Suspension SystemHyundai Veloster: Rear Coil Spring. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Suspension System / Rear Suspension System / Rear Coil Spring. Components and Components Location

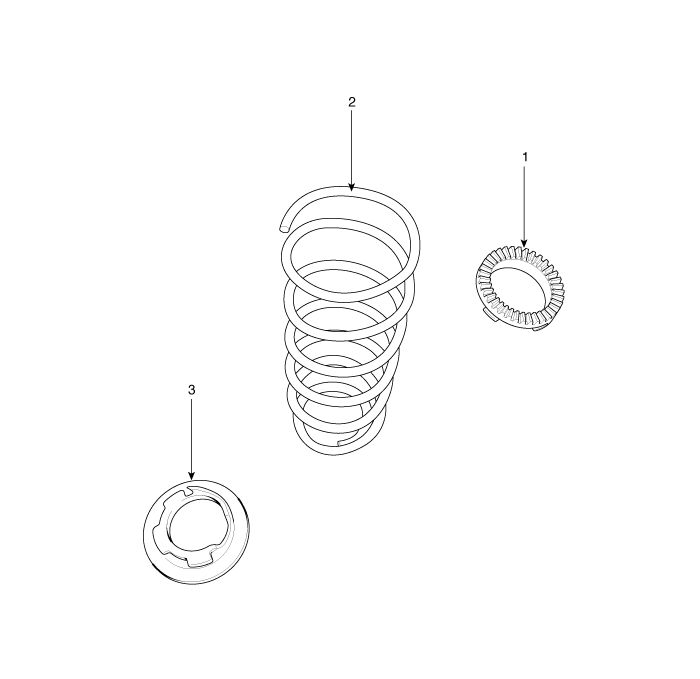

Components

1. Spring upper pad
2. Spring
3. Spring lower pad
