Inspection
Diagnosis With GDS
| 1. |
It will be able to diagnose defects of power door lock with GDS
quickly. GDS can operates actuator forcefully, input/output value monitoring
and self diagnosis.
|
| 2. |
Select model and "BCM".
|
| 3. |
Select the "SJB" to check.
|
| 4. |

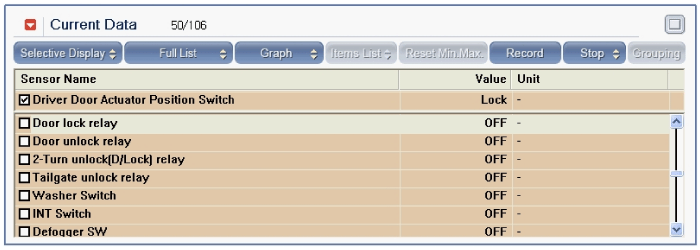

Select "Current data", if you will check current data of power
door lock system. It provides input/output status of SJB.
|
| 5. |

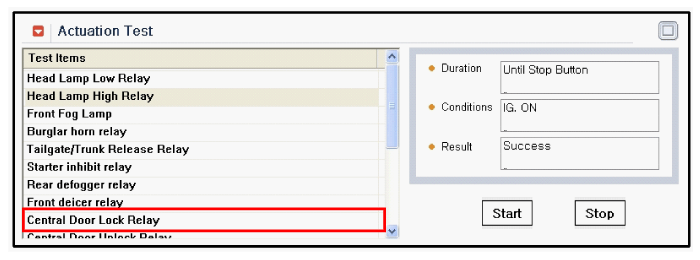

To check the power door lock operation manually, select "Actuation
test".
|
Removal
| 1. |
Disconnect the negative(-) battery terminal.
|
| 2. |
Remove the front door trim.
(Refer to the BD group - "Front door")
|
| 3. |
Remove the grip holder cover, after loosening the screw (4EA).
|
| 4. |
Remove the grip holder cover bracket.
|
| 5. |
Remover the power window switch (A), after loosening the bolts
(4EA).
|
Installation
| 1. |
Install the power window switch.
|
| 2. |
Install the grip holder cover.
|
| 3. |
Connect the connector and install the front door trim panel.
|
Power Door Lock Actuators. Repair procedures
Inspection
Front Door Lock Actuator Inspection
1.
Remove the front door trim.
(Refer to the BD group - "Front door")
2.
R ...
