Hyundai Veloster: Panoramaroof. Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Exterior / Panoramaroof. Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Exterior / Panoramaroof. Components and Components
Location
Components
|

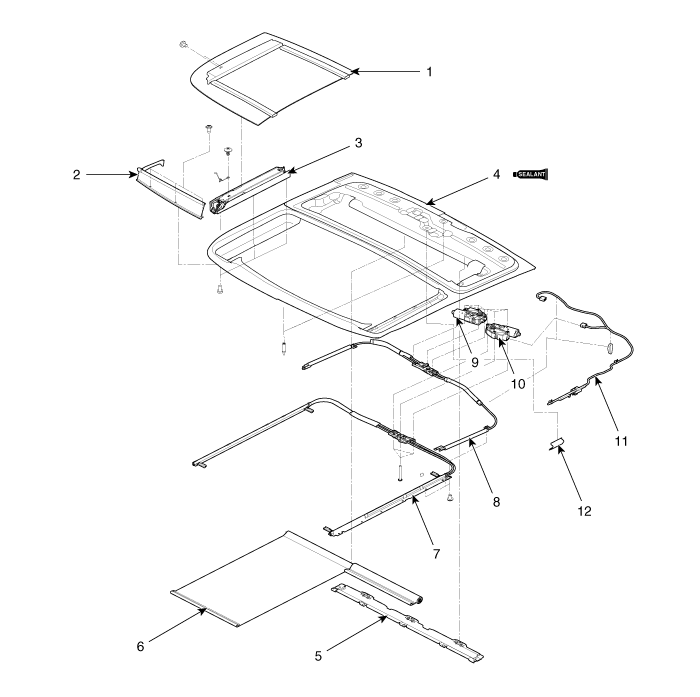

1. Movable glass assembly 2. Wind deflector assembly 3. Mechanism rail assembly 4. Panoramaroof frame assembly 5. Roller blind support lower assembly 6. Roller blind assembly |
7. Roller blind rail assembly 8. Glass drive unit assembly 9. Movable glass motor assembly 10. Roller blind motor assembly 11. Harness assembly 12. Cover tape |
Body Side Moldings. Repair procedures
Replacement
Roof Garnish Replacement
