Hyundai Veloster: Knock Sensor (KS). Schematic Diagrams
First generation (2011–present) / Hyundai Veloster 2010-2019 Service Manual / Fuel System / Engine Control System / Knock Sensor (KS). Schematic Diagrams
First generation (2011–present) / Hyundai Veloster 2010-2019 Service Manual / Fuel System / Engine Control System / Knock Sensor (KS). Schematic Diagrams

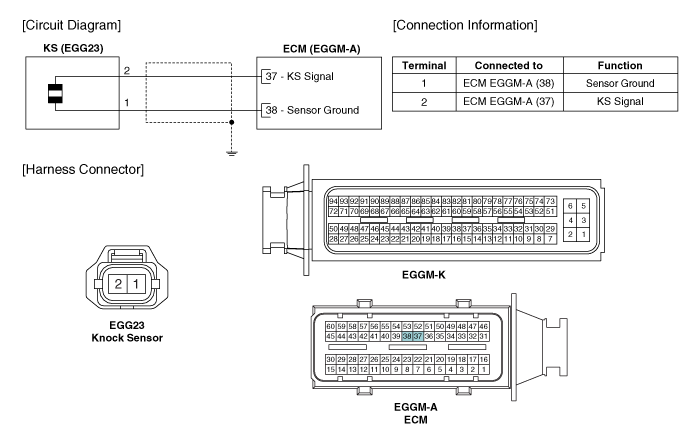

Circuit Diagram
Knock Sensor (KS). Specifications
Specification
Item
Specification
Capacitance (pF)
950 ~ 1,350
Resistance (MΩ)
4.87
...
Knock Sensor (KS). Repair procedures
Removal
1.
Turn the ignition switch OFF and disconnect the battery negative
(-) cable.
2.
Remove the intake manifold (Refer to “Intake An ...
