Hyundai Veloster: Heated Oxygen Sensor (HO2S). Schematic Diagrams - Engine Control System - Fuel SystemHyundai Veloster: Heated Oxygen Sensor (HO2S). Schematic Diagrams

Hyundai Veloster 2011-2017 Service Manual / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S). Schematic Diagrams

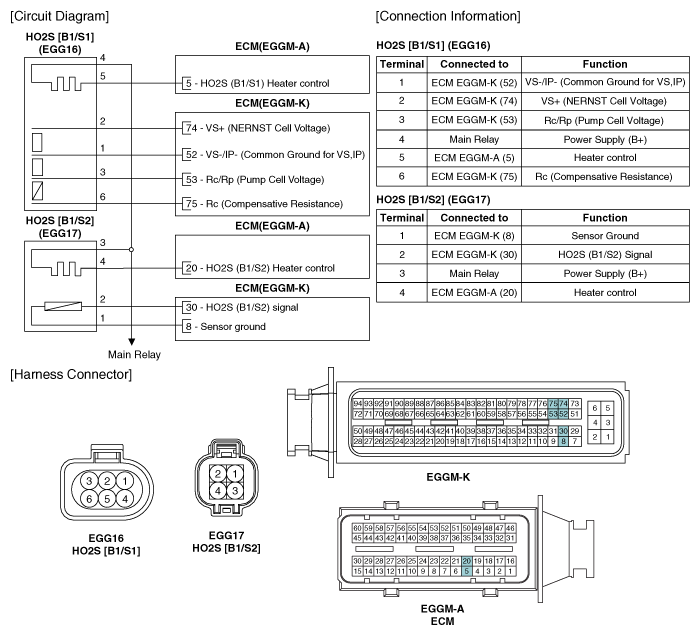

Circuit Diagram


Heated Oxygen Sensor (HO2S). Troubleshooting
Signal Waveform ...

Heated Oxygen Sensor (HO2S). Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between th ...
