Hyundai Veloster: Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

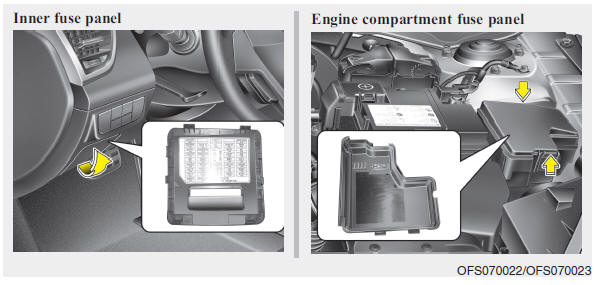

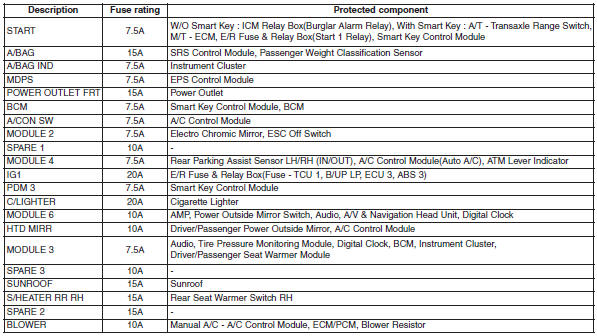

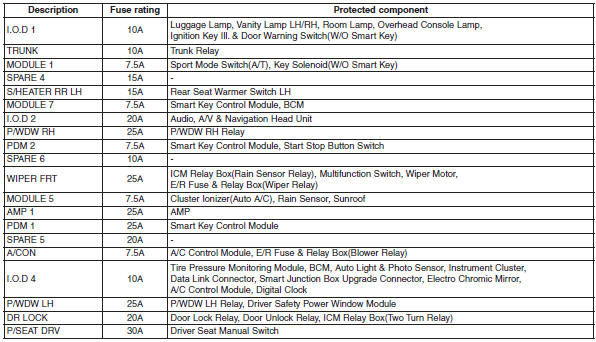

Instrument panel (Driver’s side fuse panel)

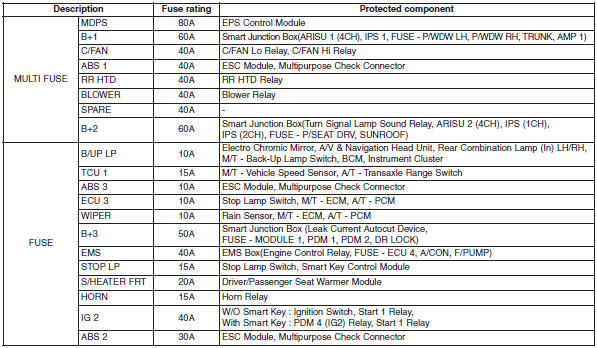

Engine compartment main fuse panel

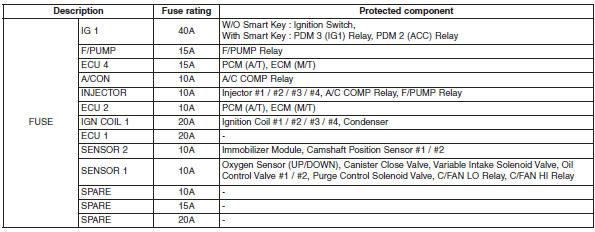

Engine compartment fuse replacement
1. Turn the ignition switch and all other switches off. 2. Remove the fuse
panel cover by pressing the tab and pulling up. 3. Check the removed fuse; replace
it if it is blown. To remove or inse ...
Light bulbs
WARNING - Working on the lights
Prior to working on the light, firmly apply the parking brake, ensure that
the ignition switch is turned to the LOCK position and turn off the lights to avoid
sudd ...
