Hyundai Veloster: Front Wiper Motor. Components and Components Location - Windshield Wiper/Washer - Body Electrical SystemHyundai Veloster: Front Wiper Motor. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor. Components and Components Location

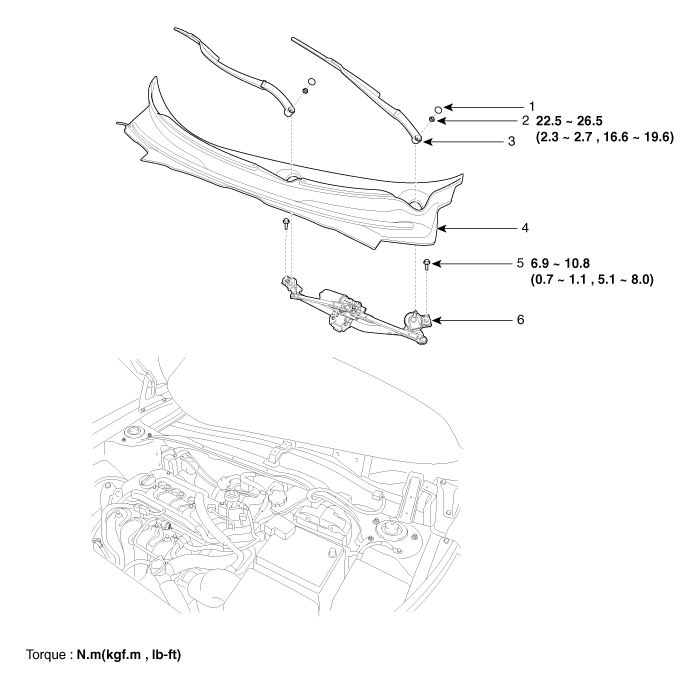

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Cowl top cover
5. Bolt
6. Wiper motor & linkage assembly
