Hyundai Veloster: Front Driveshaft. Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Driveshaft and axle / Driveshaft Assembly / Front Driveshaft. Components and Components
Location
Hyundai Veloster 2011-2017 Service Manual / Driveshaft and axle / Driveshaft Assembly / Front Driveshaft. Components and Components
Location

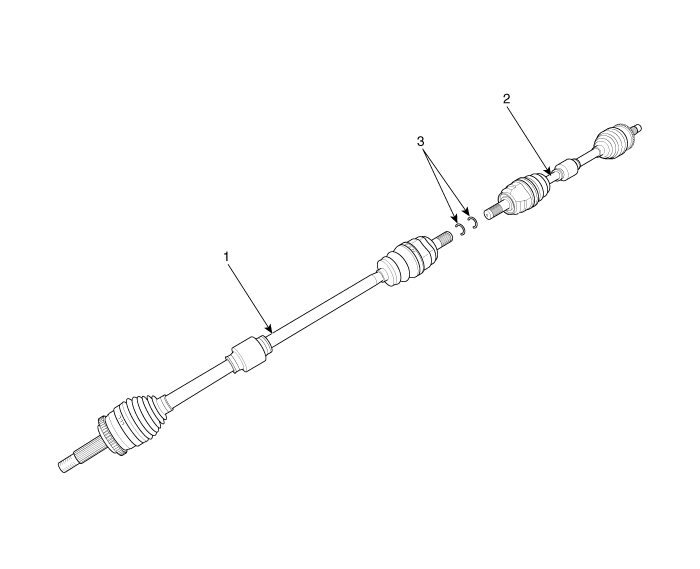

Component location
|
1. Driveshaft (RH) 2. Driveshaft (LH) |
3. Circlip |
Components

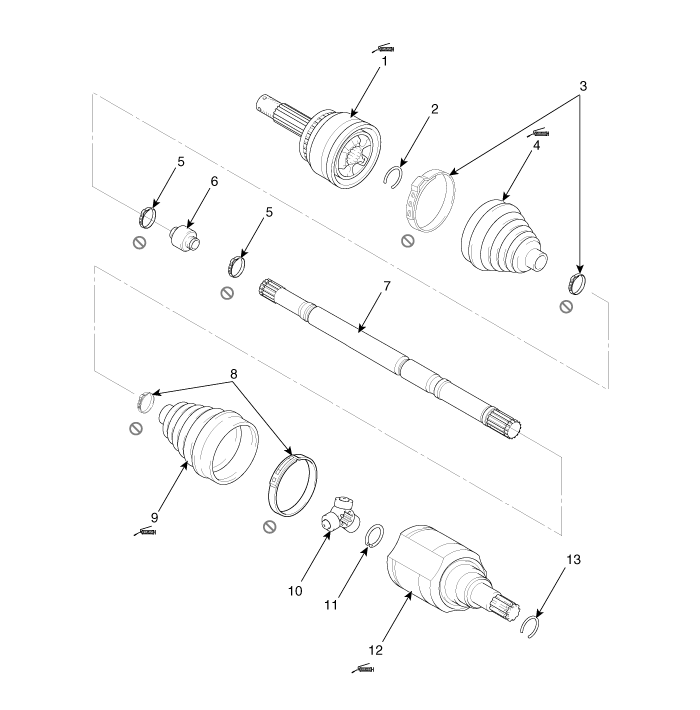

| [RH] |
|
1. BJ assembly 2. Circlip 3. BJ boot band 4. BJ boot |
5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band |
9. TJ boot 10. Spider assembly 11. Snap ring 12. TJ case |
13. Circlip |

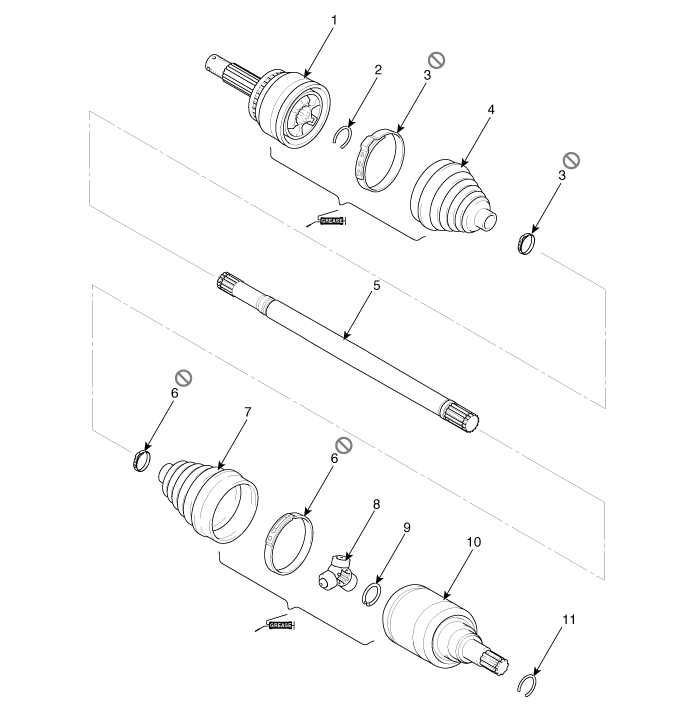

| [LH] |
|
1. BJ assembly 2. BJ circlip 3. BJ boot band 4. BJ boot |
5. Shaft 6. TJ boot band 7. TJ boot 8. Spider assembly |
9. Snap ring 10. TJ case 11. Circlip |
Front Driveshaft. Repair procedures
Replacement
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the front wheel and ...
