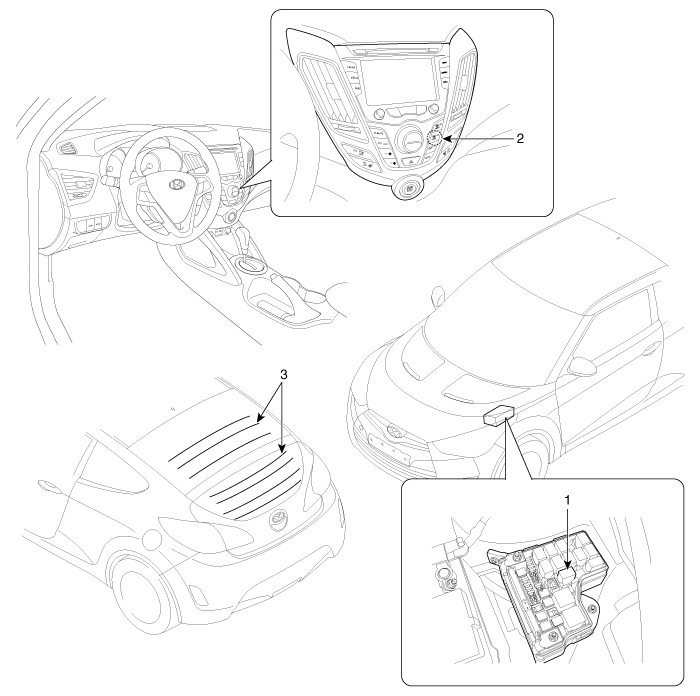

Component Location
|
1. Rear glass defogger relay (Engine room relay box) 2. Rear glass defogger switch (A/C controller) |
3. Rear glass defogger |
