Component Location
|

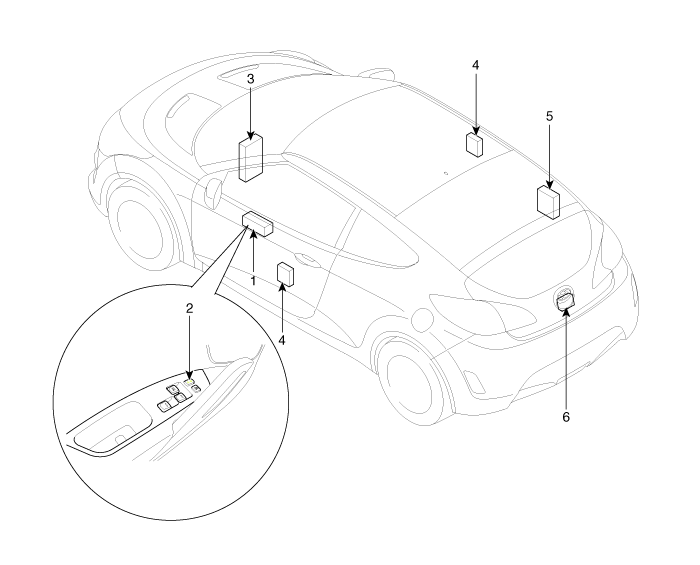

1. Driver power window switch 2. Door lock switch 3. IPM |
4. Front door lock actuator 5. Rear door lock actuator 6. Tailgate open actuator |
※ IPM : Intelligent integrated Platform Module
Power Door Locks
...
Power Door Lock Actuators. Repair procedures
Inspection
Front Door Lock Actuator Inspection
1.
Remove the front door trim.
(Refer to the BD group - "Front door")
2.
R ...
