Component Location
|

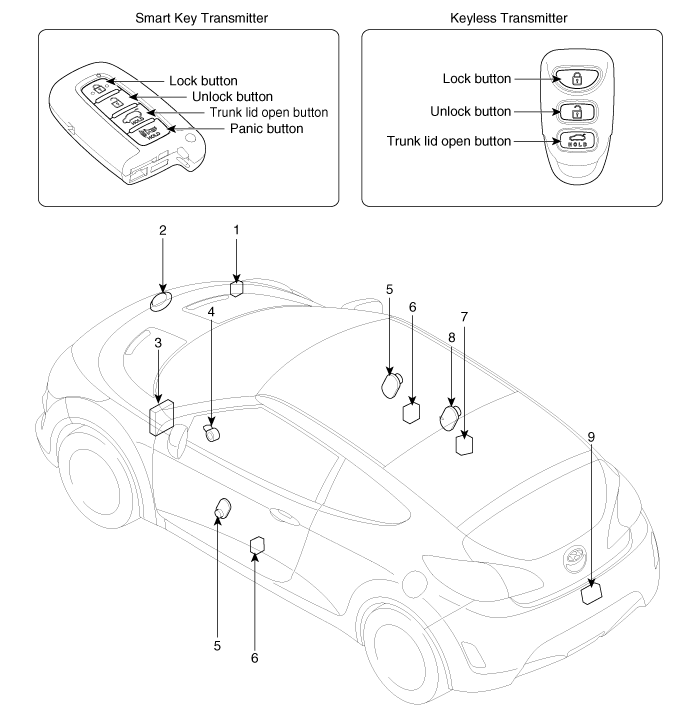

1. Hood switch 2. Burglar horn 3. IPM (BCM) and RF antenna 4. Key warning switch 5. Front door switch |
6. Front door lock actuator & switch 7. Rear door lock actuator & switch 8. Rear door switch 9. Tailgate switch |
Specifications
Specification
Item
Description
Power source
3V
Operating temperature
-20°C ~ +60°C
RF Modulation
...
Description and Operation
Description
Burglar Alarm System
The burglar alarm system is armed automatically after the doors, hood,
and trunk lid are closed and locked with keyless transmitter.
The system is s ...
