Hyundai Veloster: Components and Components Location
Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / Smart key System / Components and Components Location
Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / Smart key System / Components and Components Location

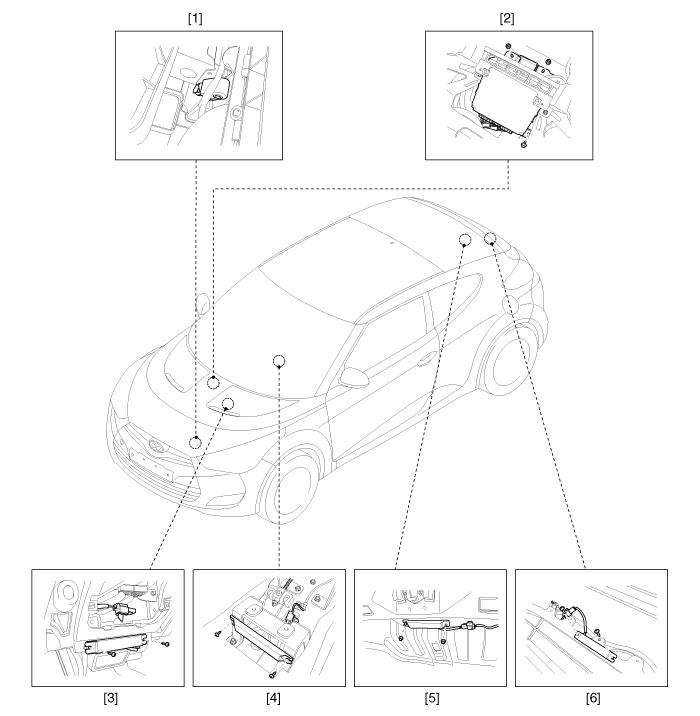

Component Location (1)
|
1. Buzzer 2. Smart key unit 3. Interior antenna 1 |
4. Interior antenna 2 5. Trunk antenna 6. Bumper antenna |

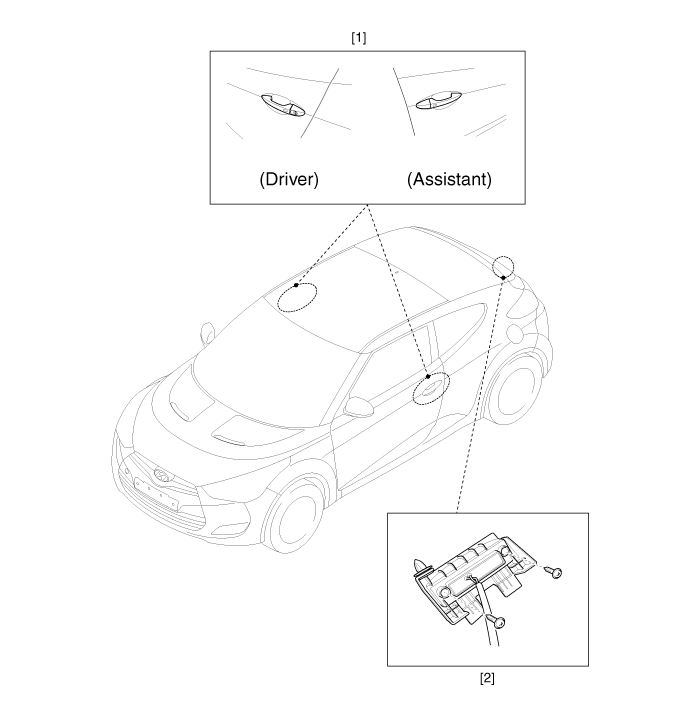

Component Location (2)
|
1. Door outside handle |
2. Trunk lid open switch |
Specifications
Specification
Smart Key Unit
Items
Specification
Rated voltage
DC 12V
Operating voltage
DC 9 ~ 16V
O ...
Description and Operation
Description
The SMART KEY system is a system that allows the user to access and operate
a vehicle in a very convenient way. To access the vehicle, no traditional key
or remote control unit i ...
