Components Location
|

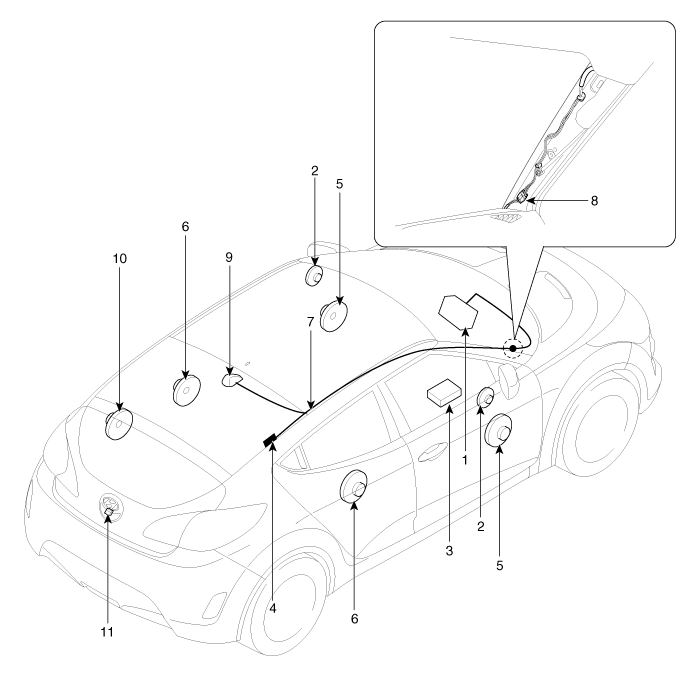

1. AVN (A/V & Navigation head unit) 2. Midrange speaker 3. External amplifier 4. Glass antenna amplifier (Radio) 5. Front door speaker 6. Rear door speaker |
7. Antenna feeder cable 8. Antenna cable connector 9. Roof antenna (GPS) 10. Woofer speaker 11. Back view camera |
Specifications
Specifications
Item
Specification
Power source
DC 14.4V (-) ground
Frequency range
FM : 87.5 ~ 107.9 MHz / 200 kHz
...
Schematic Diagrams
System Block Diagram
...
