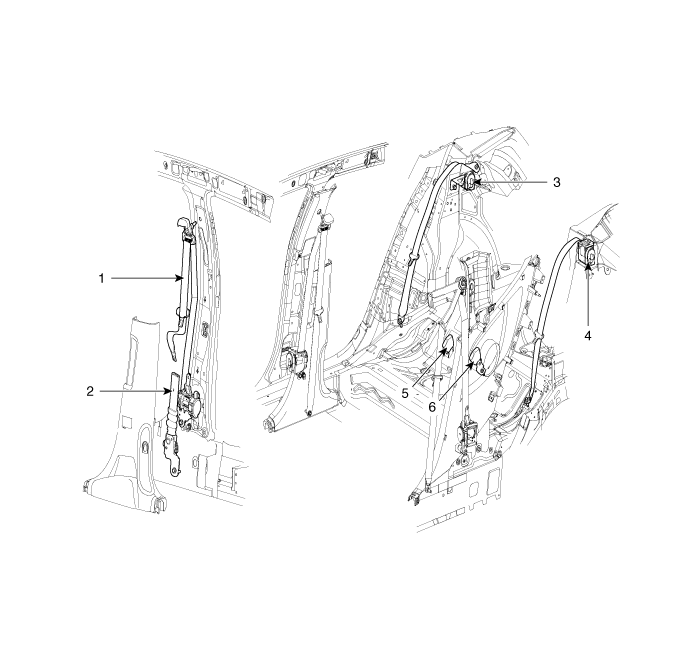

Components
|
1. Front seat belt 2. Anchor pretensioner 3. Rear seat belt [RH] |
4. Rear seat belt [LH] 5. Rear seat belt buckle [RH] 6. Rear seat belt buckle [LH] |
Seat Belt
...
Front Repair procedures
Replacement
Front Seat Belt Replacement
•
When installing the belt, make sure not to
damag ...
