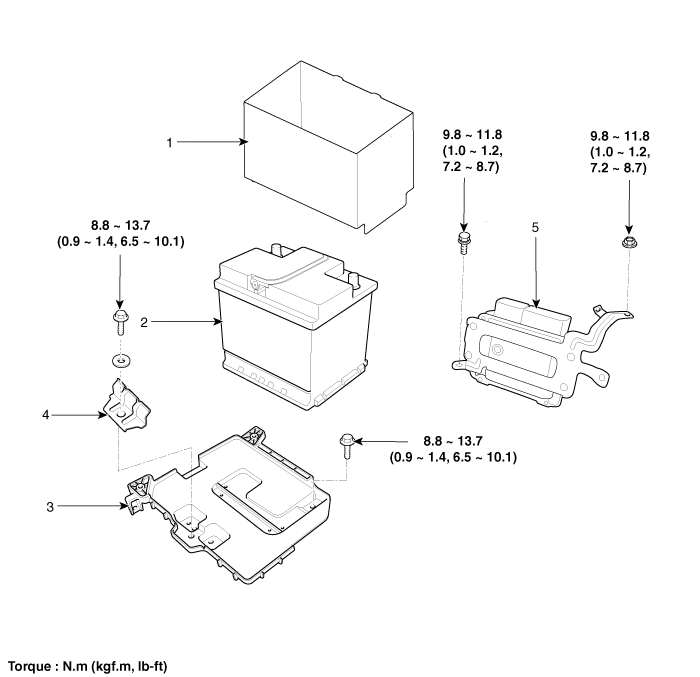

Components
|
1. Battery insulation pad 2. Battery 3. Battery tray |
4. Battery mounting bracket 5. ECM & bracket assembly |
Description and Operation
Description
1.
The maintenance-free battery is, as the name implies, totally
maintenance free and has no removable battery cell caps.
2.
W ...
Repair procedures
Removal and Installation
1.
Remove the battery.
(1)
Disconnect the battery terminals (A).
Tightening ...
