Hyundai Veloster: Wheel. Repair procedures - Tires/Wheels - Suspension System - Hyundai Veloster 2010-2019 Service ManualHyundai Veloster: Wheel. Repair procedures

Hub Nut Tightening Sequence

Tighten the hub nuts as follows.

Tightening torque :
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)

When using an impact gun, final tightening torque should be checked using a torque wrench.

Wheel Runout

1.
Jack up the vehicle and support it with jack stands.
2.

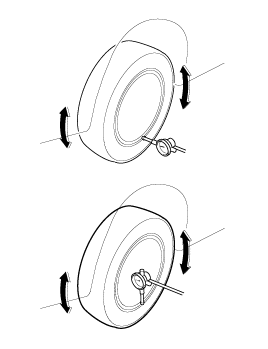

Measure the wheel runout with a dial indicator as illustated.
3.
Replace the wheel if the wheel runout exceeds the limit.
Type
Radius direction
Axis direction
Aluminium
0.3mm (0.01in)
0.3mm (0.01in)
