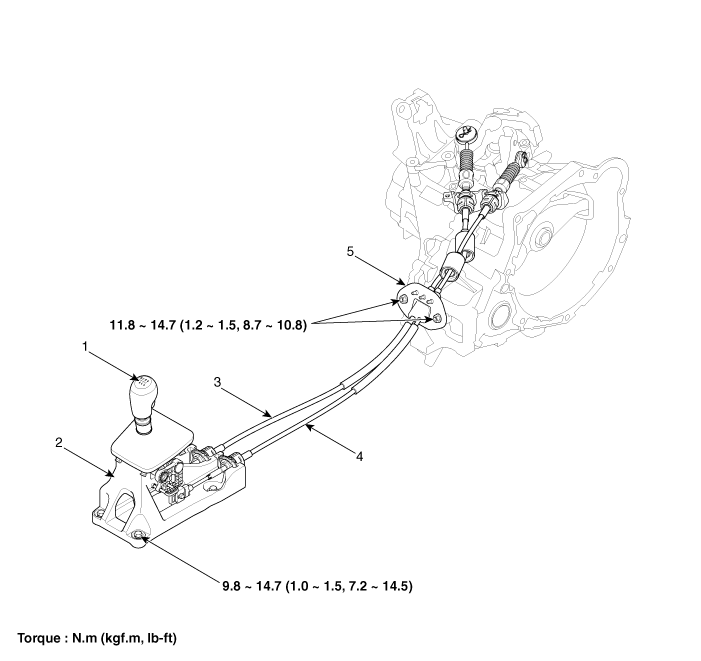

Components
|
1. Shift lever knob & boot assembly 2. Shift lever assembly 3. Shift cable assembly |
4. Select cable assembly 5. Retainer |
Shift Lever. Repair procedures
Removal
Shift Lever Assembly
Replacement
1.
Remove the floor Interior console assembly.
(Refer to "Interior(Console)" in BD group)
...
