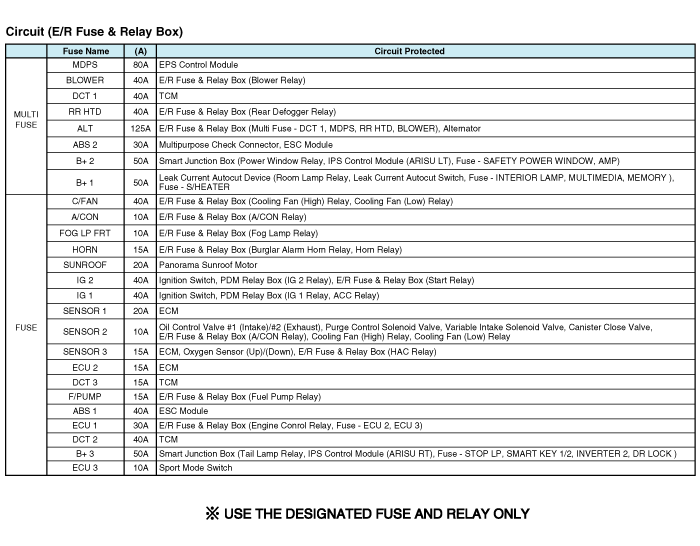

Components
Components and Components Location

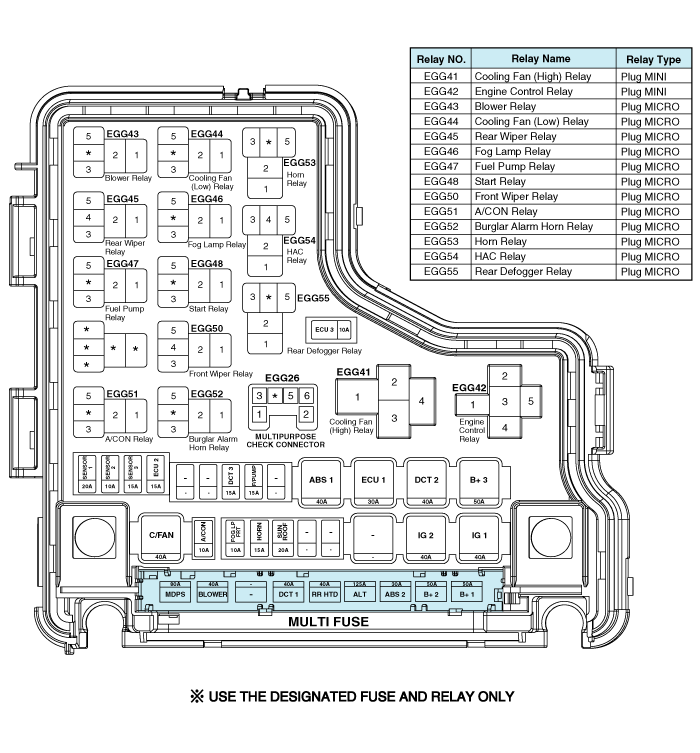

Component Location
1. A/C relay
2. Fuel pump relay
3. Rear wiper relay
4. Blower relay
5. Buglar alarm horn realy
6. Front wiper relay
7. Starter relay
...
Relay Box (Engine Compartment). Repair procedures
Inspection
Power Relay Test (Type A)
-
Do not use pliers.
-
...
