Hyundai Veloster: Rear Seat. Components and Components Location - Seat & Power Seat - Body (Interior and Exterior)Hyundai Veloster: Rear Seat. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Seat & Power Seat / Rear Seat. Components and Components Location

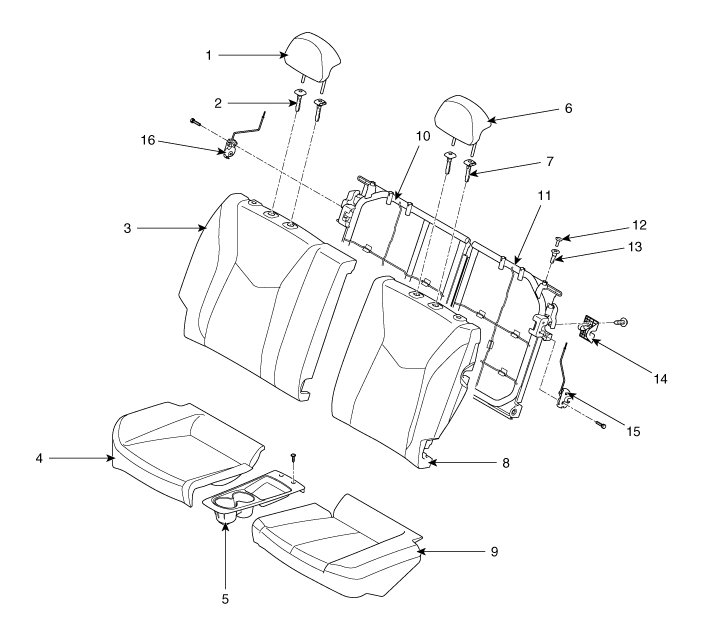

Components

1. Headrest [RH]
2. Headrest guide [RH]
3. Rear seat back cover [RH]
4. Rear seat cushion cover [RH]
5. Cup holder panel assembly
6. Headrest [LH]
7. Headrest guide [LH]
8. Rear seat back cover [LH]
 9. Rear seat cushion cover [LH]
10. Rear seat back panel [LH]
11. Rear seat back panel [RH]
12. Rear seat folding lever
13. Rear seat folding lever cover
14. Rear seat latch cover
15. Rear seat latch assembly [LH]
16. Rear seat latch assembly [RH]


Front Seat. Repair procedures
Replacement Front Seat Assembly Replacement 1. Remove the front foot cover. 2. After loosening the front seat assembly mounting bolts, ...

Rear Seat. Repair procedures
Replacement Rear Seat Assembly Replacement 1. After loosening the mounting bolts, then remove the rear seat cushion (A). Tightening torque ...
