Hyundai Veloster: Power Door Mirror Actuator. Repair procedures
First generation (2011–present) / Hyundai Veloster 2010-2019 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator. Repair procedures
First generation (2011–present) / Hyundai Veloster 2010-2019 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator. Repair procedures
Inspection
| 1. |
Disconnect the negative(-) battery terminal.
|
| 2. |
Remove the delta cover(A).
|
| 3. |
Disconnect the connector from the mirror.
|
| 4. |

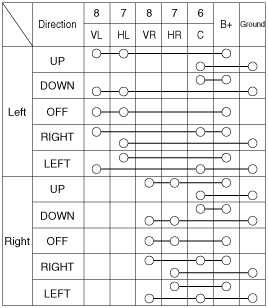

Verify that the mirror operates properly as shown in the table.
Mirror Heater Inspection
Turn signal lamp inspection
|
