Hyundai Veloster: Multimedia Jack. Schematic Diagrams - AVN System - Body Electrical SystemHyundai Veloster: Multimedia Jack. Schematic Diagrams

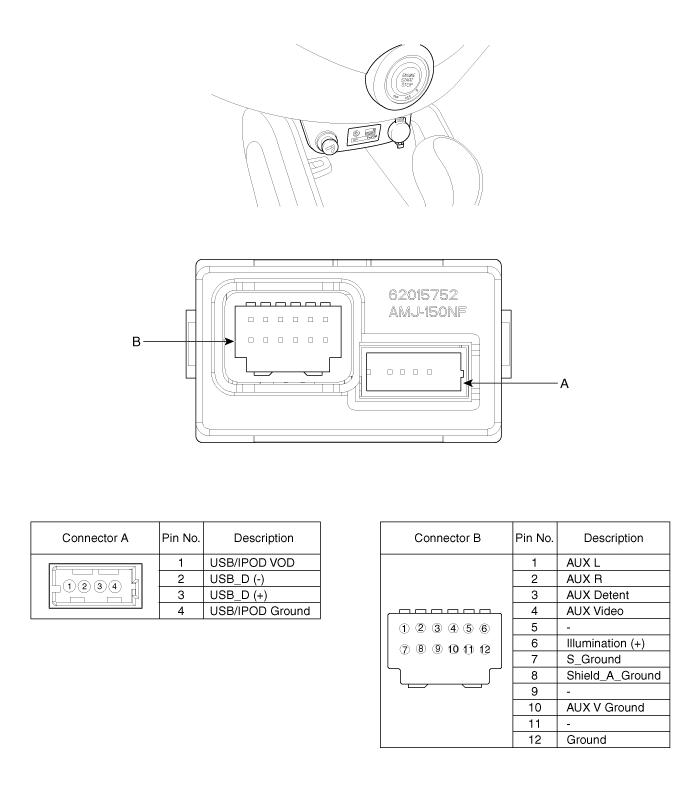

Circuit Diagram


AVN Remote Control. Repair procedures
Inspection 1. Check the audio remote control switch (A) for resistance between connector terminals in each switch position. [LH-AUDIO] [RH-TRIP] ...

Multimedia Jack. Description and Operation
Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, iPod and etc., through the vehicle's sound ...
