Hyundai Veloster: Instrument Cluster. Components and Components Location - Indicators And Gauges - Body Electrical SystemHyundai Veloster: Instrument Cluster. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster. Components and Components Location

Components


Components and Components Location

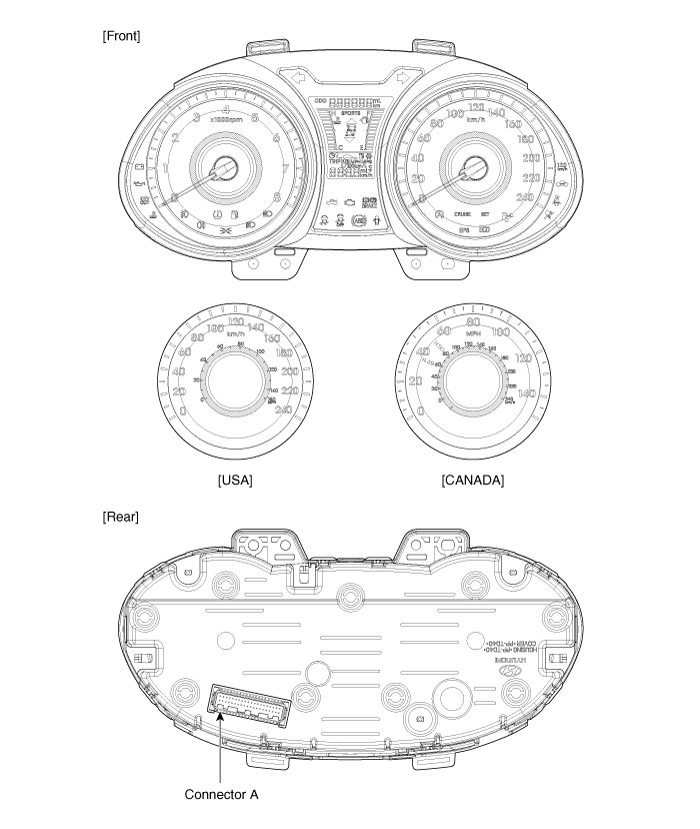

Component Location 1. Instrument cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sender 5. Oil pressure switchs 6. Brake f ...

Instrument Cluster. Schematic Diagrams

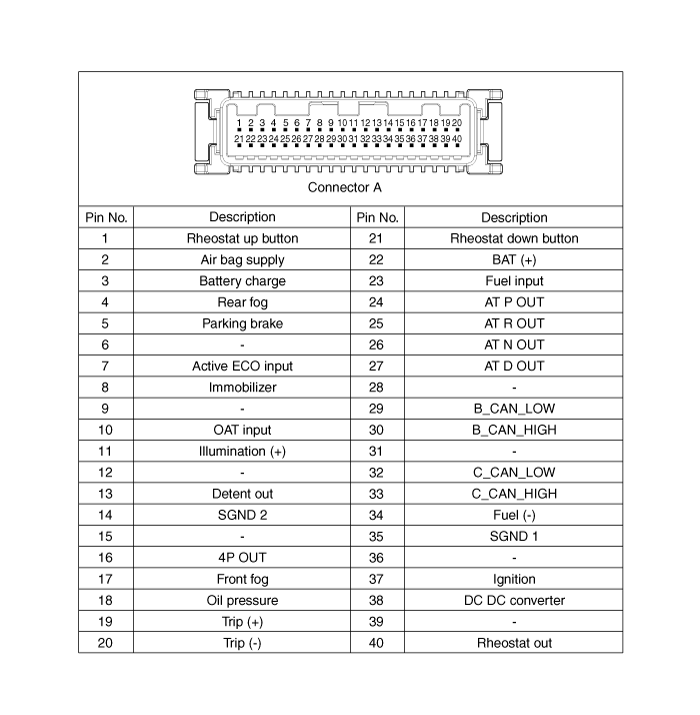

Circuit Diagram ...
