Hyundai Veloster: Injector. Schematic Diagrams - Engine Control System - Fuel SystemHyundai Veloster: Injector. Schematic Diagrams

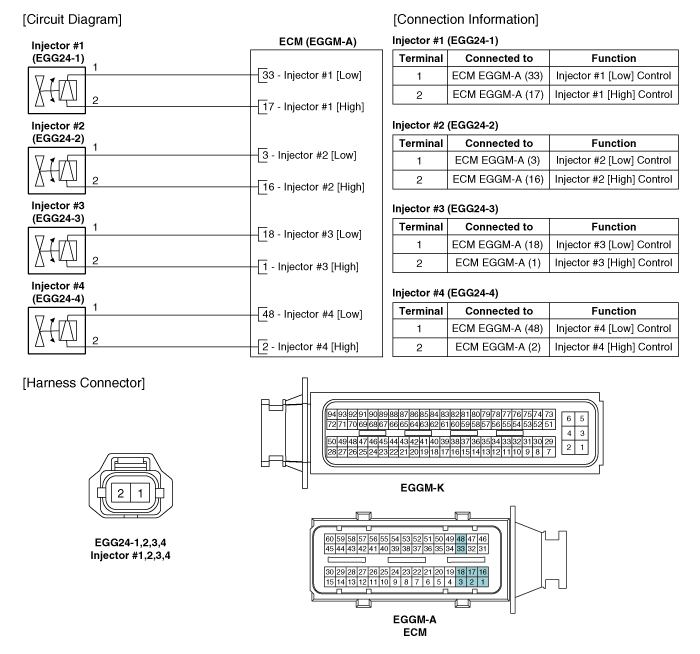

Circuit Diagram


Injector. Troubleshooting
Signal Waveform ...

Injector. Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3. Measure resistance betwee ...
