Hyundai Veloster: Head Lamps. Components and Components Location - Lighting System - Body Electrical SystemHyundai Veloster: Head Lamps. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Body Electrical System / Lighting System / Head Lamps. Components and Components Location

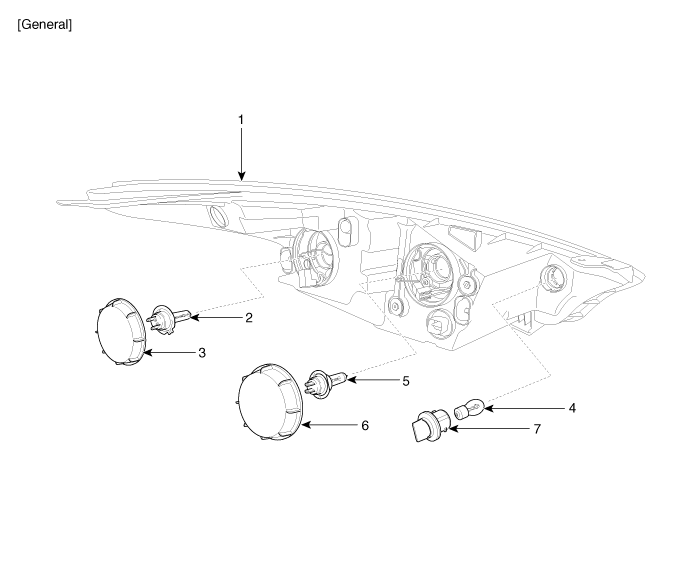

Component

1. Head lamp assembly lens & housing
2. Head lamp (Low) lamp
3. Dust cover (Low)
4. Turn signal lamp
5. Head lamp (High) lamp
6. Dust cover (High)
7. Turn signal lamp socket


Components and Components Location
Component Location 1. Head lamp (High) 2. Turn signal lamp 3. Front fog lamp 4. Head lamp(Low)/ position lamp 5. Turn signal lamp (Door mirror) 6. High mounted stop ...
