Components
|

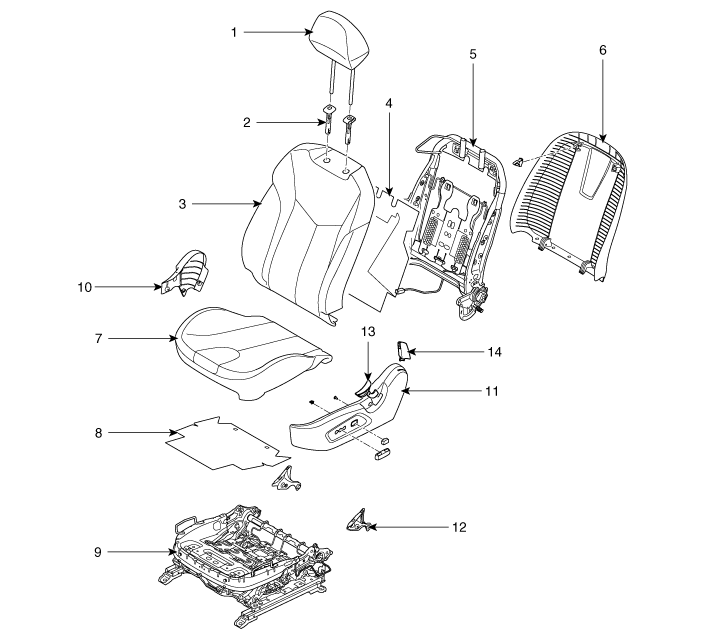

1. Headrest 2. Headrest guide 3. Front seat back cover 4. Front seat back heater 5. Front seat back frame 6. Front seat back board 7. Front seat cushion cover |
8. Front seat cushion heater 9. Front seat cushion frame 10. Front shield inner cover 11. Front shield outer cover 12. Front inside cover 13. Recliner lever 14. Seat folding lever |
Front Seat. Repair procedures
Replacement
Front Seat Assembly Replacement
1.
Remove the front foot cover.
2.
After loosening the front seat assembly mounting
bolts, ...
