Hyundai Veloster: Front Body. Body Repair
Hyundai Veloster 2011-2017 Service Manual / Body (Interior and Exterior) / Body Dimensions / Front Body. Body Repair

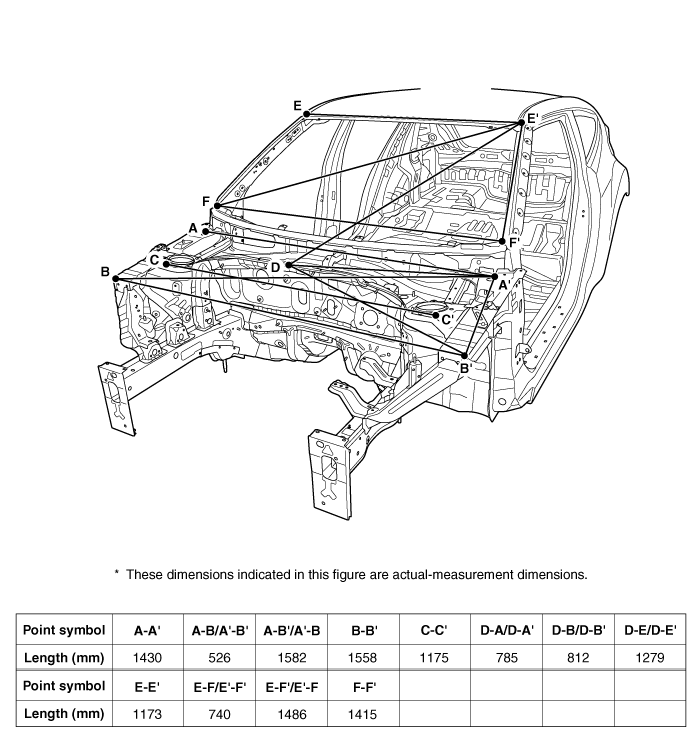

Front Body A
|
|
|
|
|
Hood hinge mounting hole (Ø10) |
Fender apron upper member corner |
Front shock absorber housing cover tooling hole (Ø6.6)
|
|
|
|
|
|
Cowl top cover mounting hole (Ø7) |
Side outer panel front corner |
Front pillar outer panel corner |

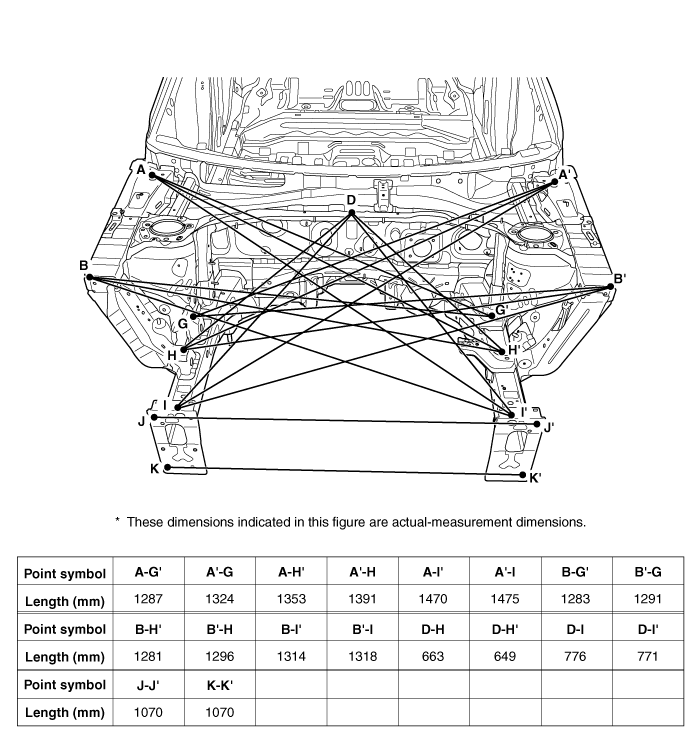

Front Body B
|
|
|
|
|
Hood hinge mounting hole (Ø10) |
Fender apron upper member corner |
Cowl top cover mounting hole (Ø7) |
|
|
|
|
|
Engine mounting bracket hole (Ø12) |
Transaxle mounting hole (Ø12) |
Engine mounting bracket hole (Ø15) |
|
|
|
|
|
Transaxle mounting hole (Ø15.5) |
Front side member tooling hole (Ø9) |
Front side member tooling hole (Ø6.6) |
|
|
|
|
|
Front end module mounting hole (Ø11.5) |
Front end module mounting hole (Ø11.5) |
|

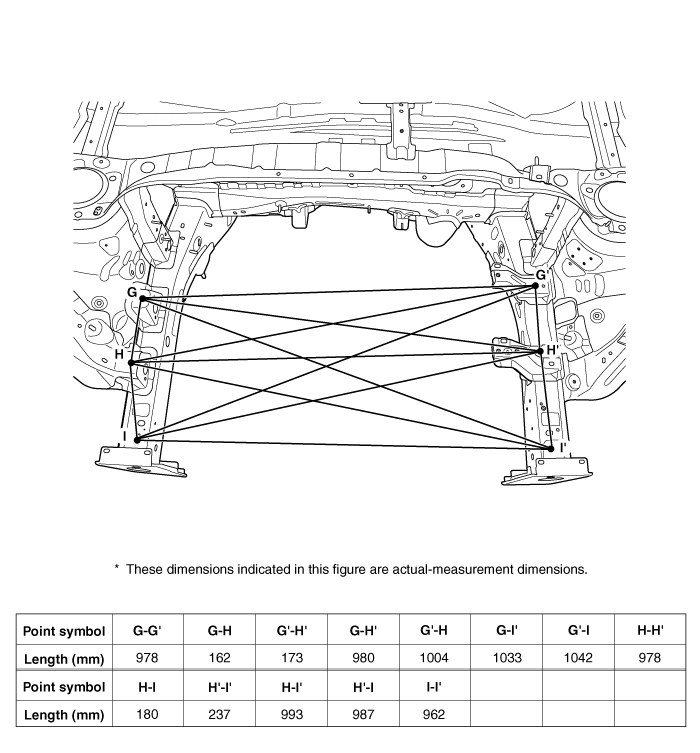

Front Body C
|
|
|
|
|
Engine mounting bracket hole (Ø12) |
Transaxle mounting hole (Ø12) |
Engine mounting bracket hole (Ø15) |
|
|
|
|
|
Transaxle mounting hole (Ø15.5) |
Front side member tooling hole (Ø9) |
Front side member tooling hole (Ø6.6) |
General Information
General
1.
Basically, all measurements in this manual are taken
with a tracking gauge.
2.
When a measuring tape is used, check to be sure ...
Side Body. Body Repair
Side Body A (LH)
Front side member tooling hole (Ø12)
Fender apron upper member tooling
hole (Ø ...
