Hyundai Veloster: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location - Airbag Module - Restraint (Depowered)Hyundai Veloster: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location

Hyundai Veloster 2011-2017 Service Manual / Restraint (Depowered) / Airbag Module / Driver Airbag (DAB) Module and Clock Spring. Components and Components Location

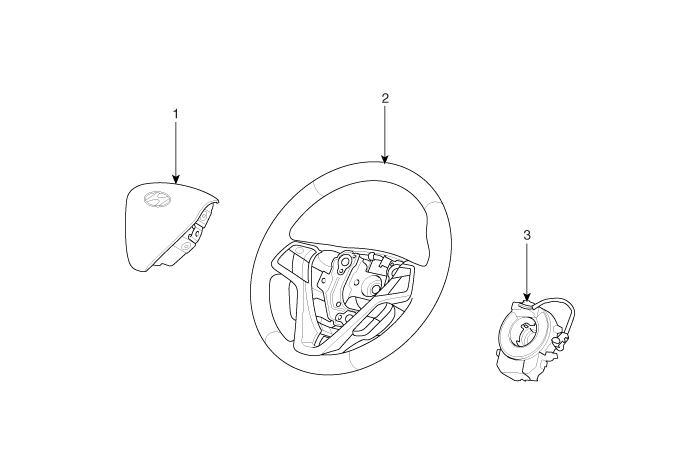

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring


Driver Airbag (DAB) Module and Clock Spring. Description and Operation
Description Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal crash ...

Driver Airbag (DAB) Module and Clock Spring. Repair procedures
Removal 1. Disconnect the battery negative cable and wait for at least three minutes before beginning work. 2. Turn the steering wheel so ...
