Components Location
| [LHD] |
|

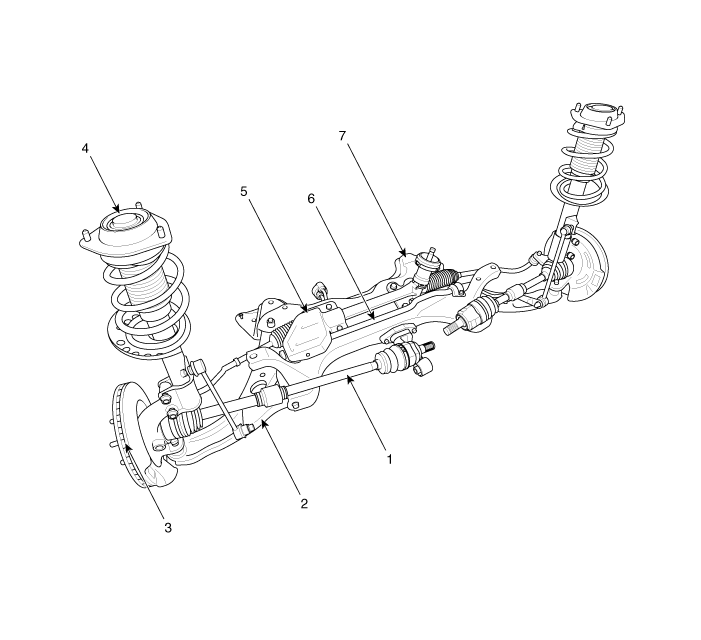

1. Drive shaft 2. Lower arm 3. Front disc 4. Front strut assembly |
5. Steering gearbox 6. Stabilizer bar 7. Sub frame |
| [RHD] |
|

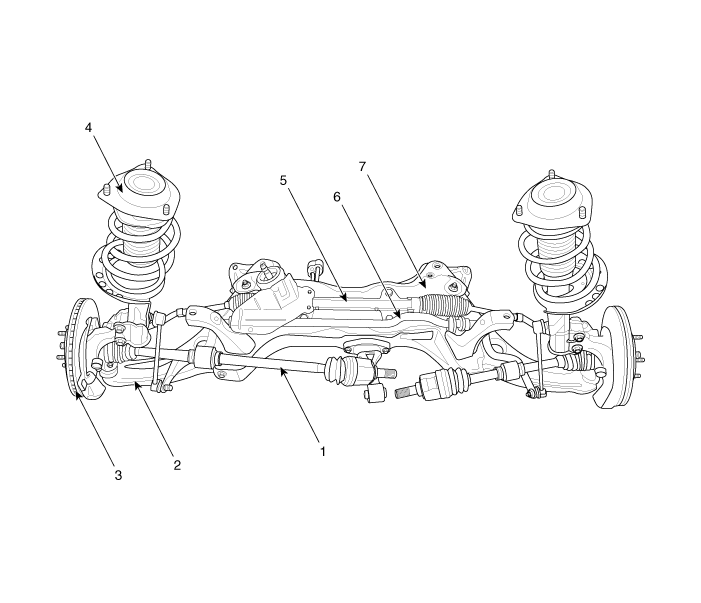

1. Drive shaft 2. Lower arm 3. Front disc 4. Front strut assembly |
5. Steering gearbox 6. Stabilizer bar 7. Sub frame |
