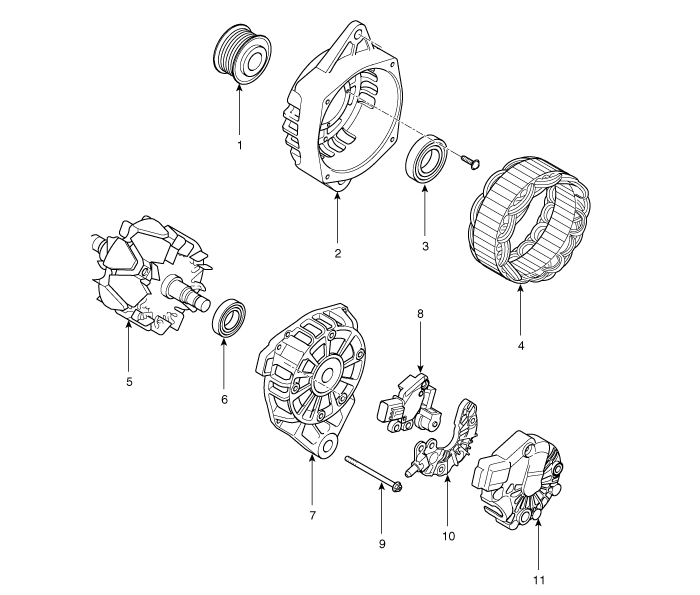

Components
|
1. Pulley 2. Front housing 3. Front bearing 4. Stator 5. Rotor |
6. Rear bearing 7. Rear housing 8. Regulator assembly 9. Through bolt 10. Rectifier assembly 11. Rear cover |
Alternator
...
Repair procedures
Removal and installation
1.
Disconnect the battery negative terminal first, then the positive
terminal.
Tightening torque
(+) ...
