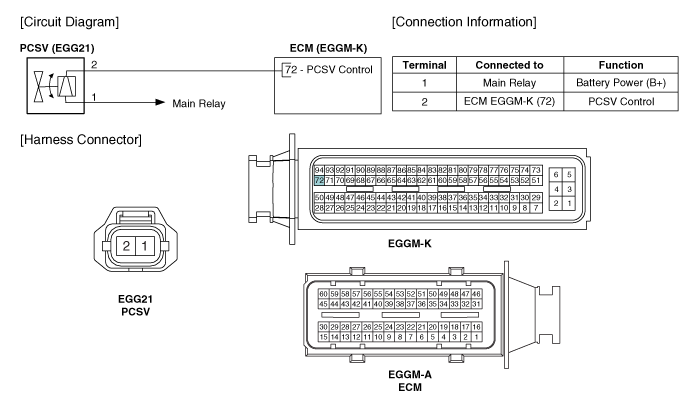

Hyundai Veloster: Purge Control Solenoid Valve (PCSV). Schematic Diagrams

Purge Control Solenoid Valve (PCSV). Specifications

Specification Item Specification Coil Resistance (Ω) 22.0 ~ 26.0 [20°C(68°F)] ...

Purge Control Solenoid Valve (PCSV). Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between th ...
