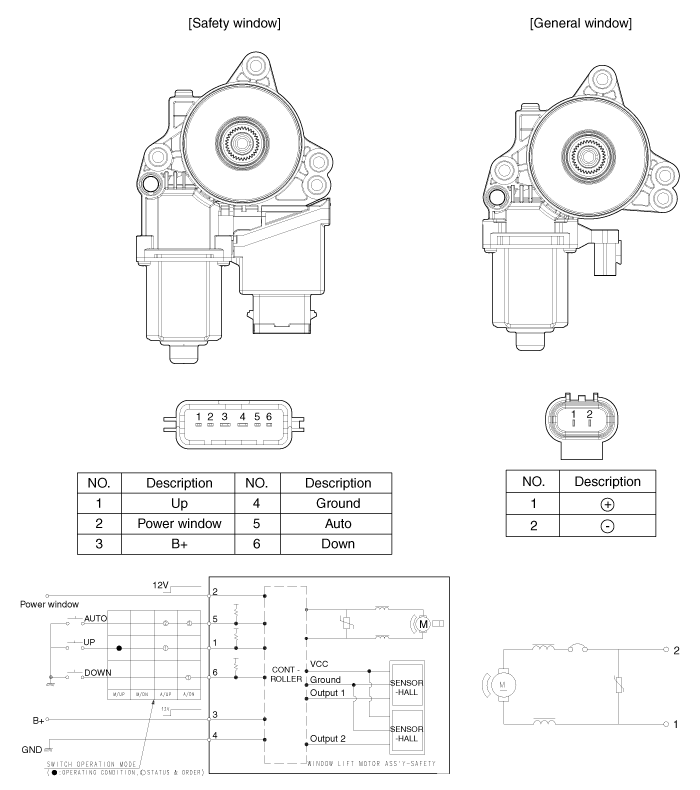

Hyundai Veloster: Power Window Motor. Schematic Diagrams

Description and Operation

Operation Function Of Safety Power Window When all door (Front, Rear) power window auto-up switch is operated, safety function is activated. 1. Safety function condi ...

Power Window Motor. Repair procedures

Inspection Front Power Window Motor Inspection 1. Remove the front door trim panel. (Refer to the BD group - "Front door") 2. ...
